Walter-Prototyp

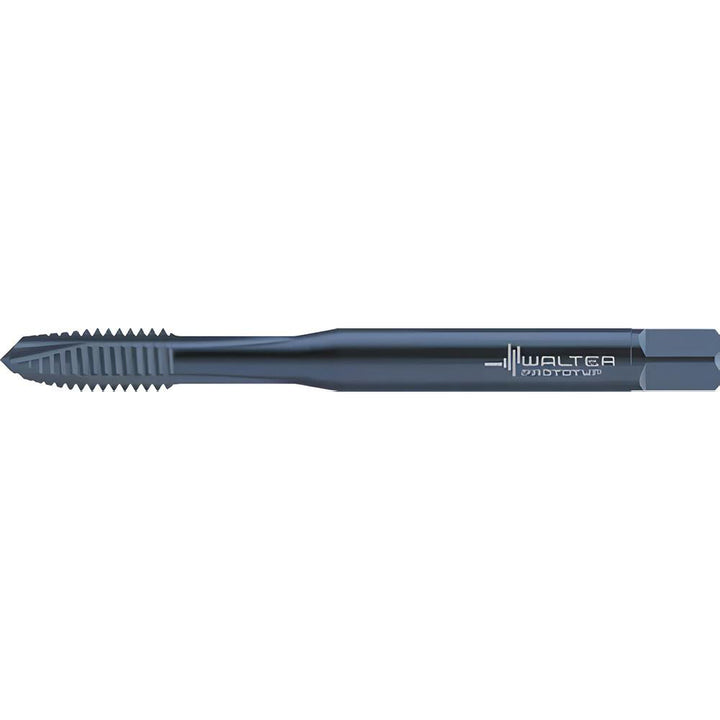

1/4-20 UNC HSS-E Spiral Point Tap, Vaporisiert - Walter-Prototyp 7557175
MFR# 7557175Series TC217
$51.88List $59.93
Save 13%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingVaporisiert
Description
The Walter-Prototyp 7557175 is a 1/4-20 UNC HSS-E Spiral Point tap with a Vaporisiert finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishVaporisiert
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material gradeWY80FC
Measurement typeDecimal Inch
Neck length0.5900
Number of flutes3
Overall length3.1500
OversizeNo
Shank diameter0.2550
StyleSpiral Point
Threads per inch20
Thread directionRight Hand
Thread length0.5910
Thread pitch0.05
Thread size in1/4-20
Thread standardUNC
