Walter-Prototyp

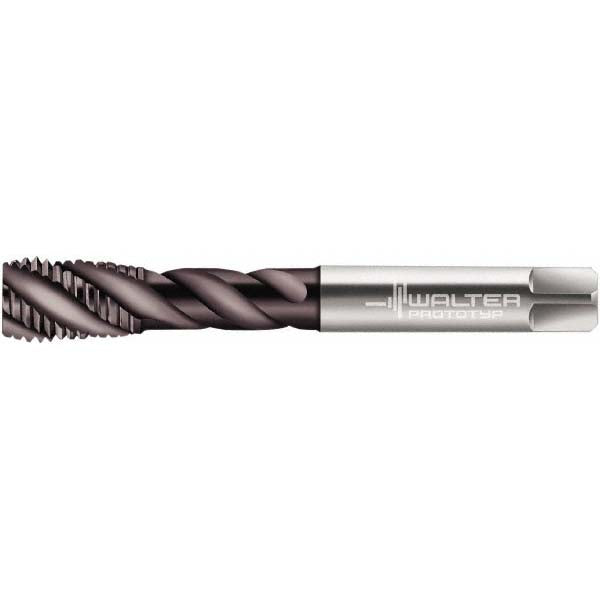

9/16-12 UNC Powdered Metal Tap, Proprietary - Walter-Prototyp 7569314
MFR# 7569314
$154.95List $198.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size9/16-12
CoatingProprietary
Description
The Walter-Prototyp 7569314 is a 9/16-12 UNC Powdered Metal tap with a Proprietary finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Number of flutes4
Overall length (mm)110.00
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)10.90
Square length0.5000
Square size0.3220
Tapping depth3.1610
Threads per inch12
Thread directionRight Hand
Thread length0.7870
Thread size in9/16-12
Thread standardUNC
