Walter-Prototyp
7/16-14 UNC HSS-E-PM Spiral Point Tap, THL - Walter-Prototyp 7569318
MFR# 7569318Series AEP2226002
$108.63List $139.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-14
CoatingTHL
Description

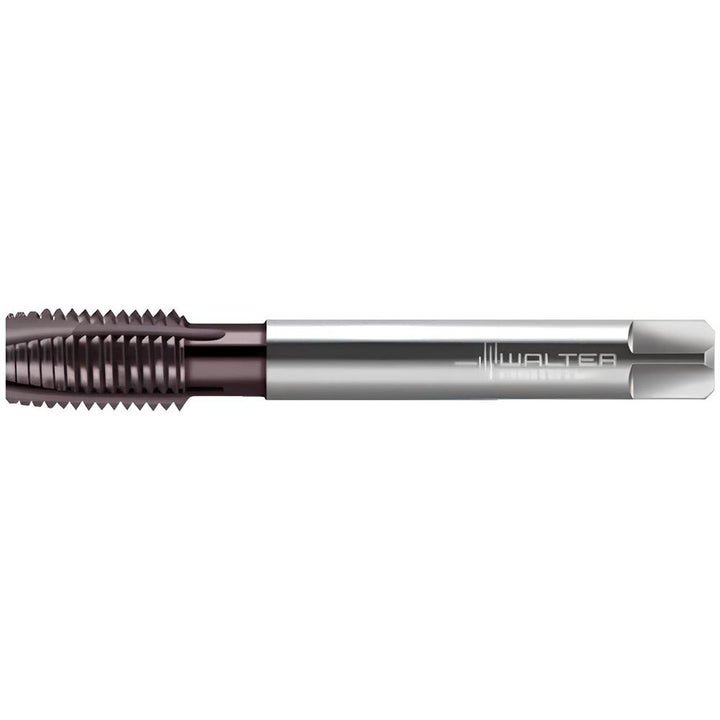

The Walter-Prototyp 7569318 is a 7/16-14 UNC HSS-E-PM Spiral Point tap with a THL finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTHL
Coolant throughNo
Interrupted threadNo
MaterialHSS-E-PM
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Measurement typeDecimal Inch
Neck length2.0750
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.3230
StyleSpiral Point
Threads per inch14
Thread directionRight Hand
Thread length0.7870
Thread pitch0.0714
Thread size in7/16-14
Thread standardUNC
