Walter-Prototyp
5/8-11 UNC Cobalt Tap, Multi-layer - Walter-Prototyp 7606580
MFR# 7606580Series TC115
$62.06List $79.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-11
CoatingMulti-layer
Description

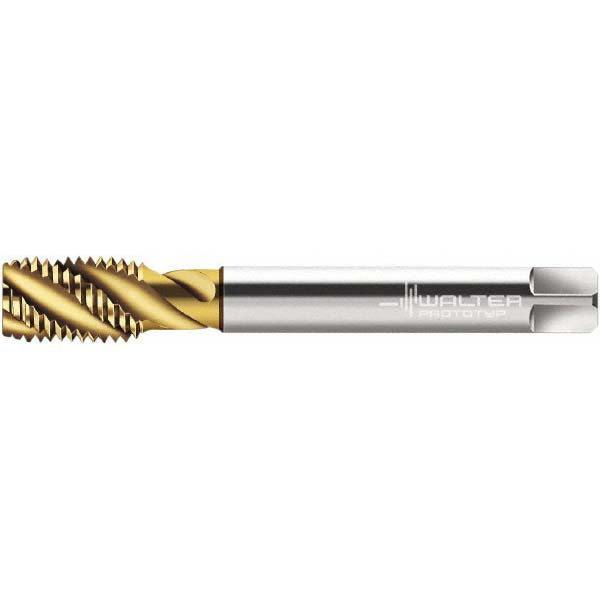

The Walter-Prototyp 7606580 is a 5/8-11 UNC Cobalt tap with a Multi-layer finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishMulti-layer
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialCobalt
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Number of flutes3
Overall length (mm)110.00
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter (mm)12.19
Square length0.5630
Square size0.3600
Tapping depth2.5870
Threads per inch11
Thread directionRight Hand
Thread length0.7870
Thread size in5/8-11
Thread standardUNC
