Walter-Prototyp
#6-32 UNC High-Speed Steel-E Tap, Steam Oxide - Walter-Prototyp 8046343
MFR# 8046343Series A224003S
$64.00List $82.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#6-32
CoatingSteam Oxide
Description

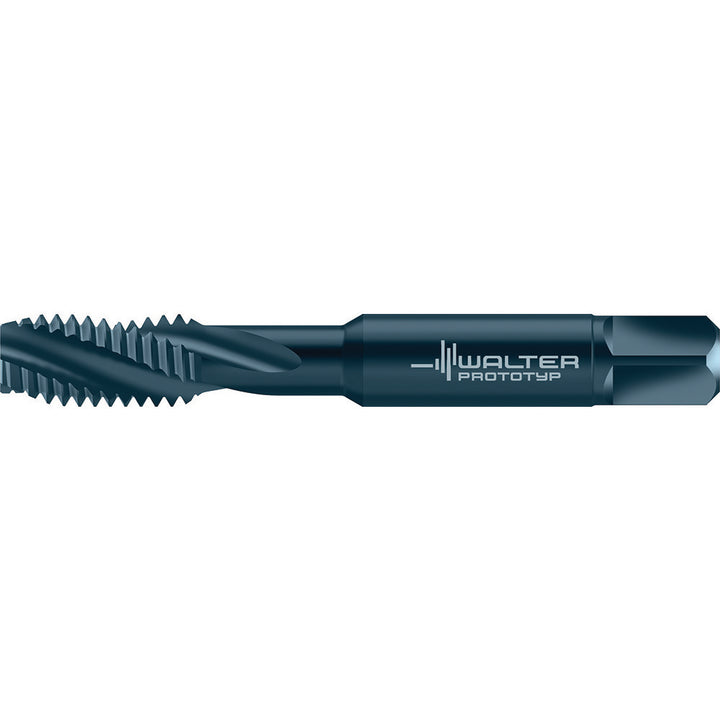

The Walter-Prototyp 8046343 is a #6-32 UNC High-Speed Steel-E tap with a Steam Oxide finish. 3 flutes.
Specifications
ApplicationThreading
ChamferBottoming
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle25.00
MaterialHigh-Speed Steel-E
Number of flutes3
Overall length2.0531
OversizeNo
Shank diameter0.1410
Square length0.1902
Square size0.1100
Tapping depth0.5118
Threads per inch32
Thread directionRight Hand
Thread length0.5118
Thread limitH9
Thread size in#6-32
Thread standardUNC
