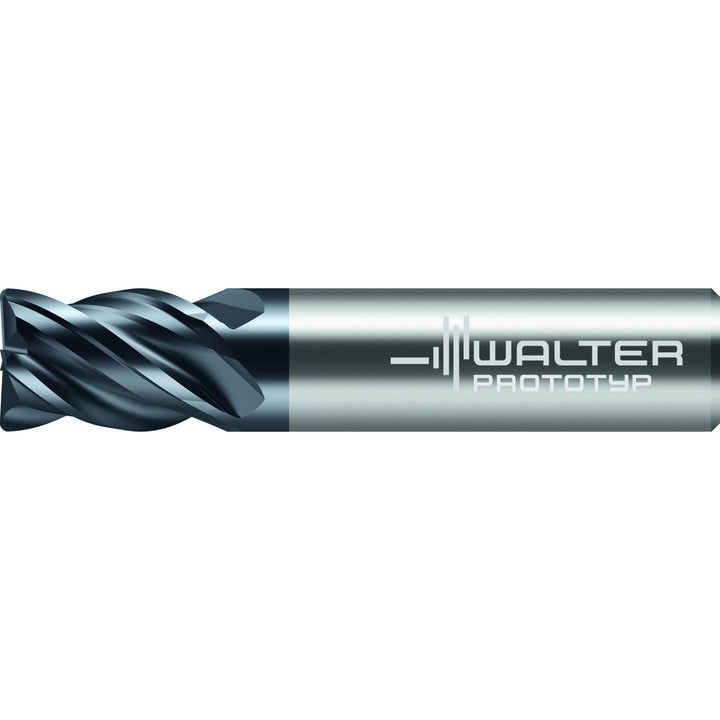

3/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nACo - Walter-Prototyp 8417083

Walter-Prototyp

3/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nACo - Walter-Prototyp 8417083

MFR# 8417083Cat# MA375.9.53A4S305-WJ30EMSeries MA375.A-4-R

$68.66List $86.53 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingnACo

Description

The Walter-Prototyp 8417083 is a 3/8 4-flute Solid Carbide corner radius & corner chamfer end mill with a nACo finish for longer tool life. Suited for superalloys & titanium. 1 length of cut, 2-1/2 overall length. Series MA375.A-4-R.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishnACo
Coolant throughNo
Corner radius0.1200
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Length of cut in1
Manufacturers catalog numberMA375.9.53A4S305-WJ30EM
Material removal typeRoughing & Finishing
Mill diameter in3/8
Number of flutes4
Overall length in2-1/2
Primary workpiece materialSuperalloys & Titanium
Reach length1.2008
Secondary workpiece materialStainless Steel; Steel
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
