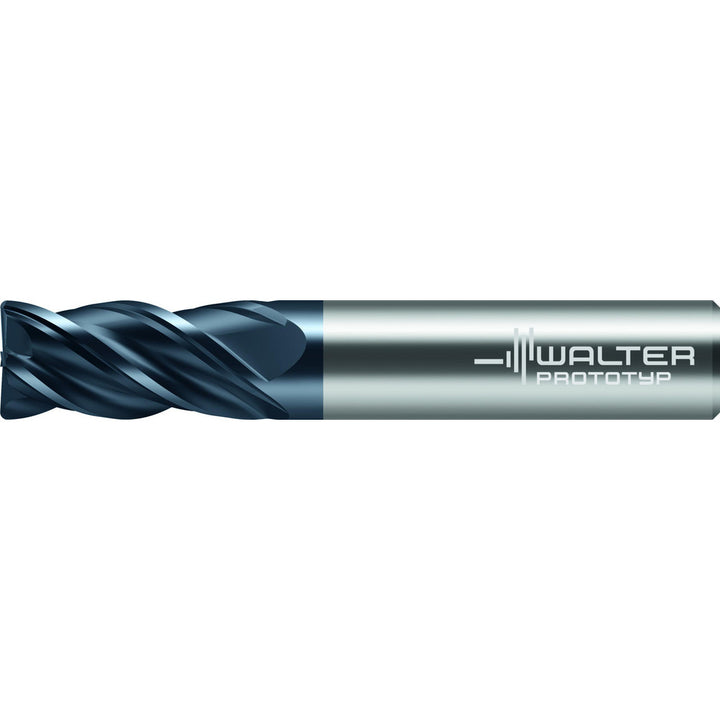

1/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nACRo - Walter-Prototyp 8417433

Walter-Prototyp

1/8" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nACRo - Walter-Prototyp 8417433

MFR# 8417433Cat# MA377.3.18A4L038X-WJ30ENSeries MA377.A-4-R

$46.39List $59.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingnACRo

Description

The Walter-Prototyp 8417433 is a 1/8 4-flute Solid Carbide corner radius & corner chamfer end mill with a nACRo finish for longer tool life. Suited for superalloys & titanium. 3/4 length of cut, 2-1/2 overall length. Series MA377.A-4-R.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishnACRo
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Length of cut in3/4
Manufacturers catalog numberMA377.3.18A4L038X-WJ30EN
Material removal typeRoughing & Finishing
Mill diameter in1/8
Number of flutes4
Overall length in2-1/2
Primary workpiece materialSuperalloys & Titanium
Reach length1.8701
Secondary workpiece materialStainless Steel; Steel
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
