Walter-Prototyp
3/4" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, nACRo - Walter-Prototyp 8417750
MFR# 8417750Cat# MA377.19.1A5L483K-WJ30ENSeries MA377.A-5-R
$409.34List $525.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide
CoatingnACRo
Description

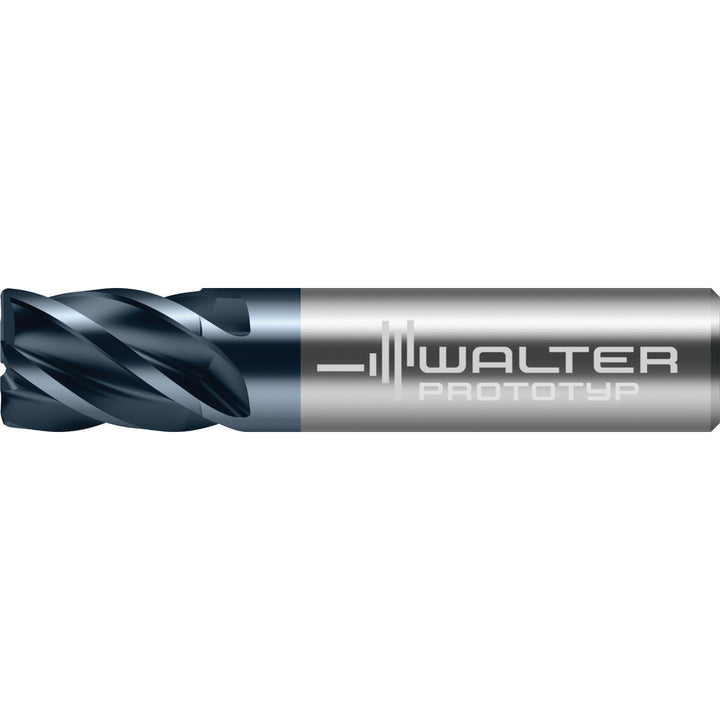

The Walter-Prototyp 8417750 is a 3/4 5-flute Solid Carbide corner radius & corner chamfer end mill with a nACRo finish for longer tool life. Suited for superalloys & titanium. 3-1/4 length of cut, 6 overall length. Series MA377.A-5-R.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishnACRo
Coolant throughNo
Corner radius0.1900
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Length of cut in3-1/4
Manufacturers catalog numberMA377.19.1A5L483K-WJ30EN
Material removal typeRoughing & Finishing
Mill diameter in3/4
Number of flutes5
Overall length in6
Primary workpiece materialSuperalloys & Titanium
Reach length4.3071
Secondary workpiece materialStainless Steel; Steel
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
