Walter-Titex

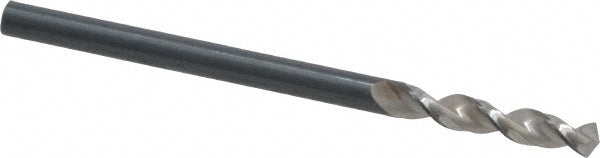

#37 Vanadium High Speed Steel Drill Bit, 130° point - Walter-Titex 5057080
MFR# 5057080Series A1148
$6.38List $7.62
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter-Titex 5057080 is a #37 Vanadium High Speed Steel drill bit, 130° point. Suited for aluminum alloy, aluminum silicon alloy, brass, copper alloy, stainless steel, steel. 1-11/16 overall length. Series A1148.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.00055 to 0.00000 in; -0.014 to 0.000 mm
Drill bit gradeHigh Performance
Drill bit size0.1040
Drill bit size range0.1000 to 0.1500
Drill bit size wire#37
Drill point angle130
Flute length (mm)14.00
Flute typeParabolic
Overall length in1-11/16
Point typeSplit
Primary workpiece materialAluminum Alloy; Aluminum Silicon Alloy; Brass; Copper Alloy; Stainless Steel; Steel
Shank typeStraight-Cylindrical
Specification designationBS; DIN
Tool materialVanadium High Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
