Walter-Titex

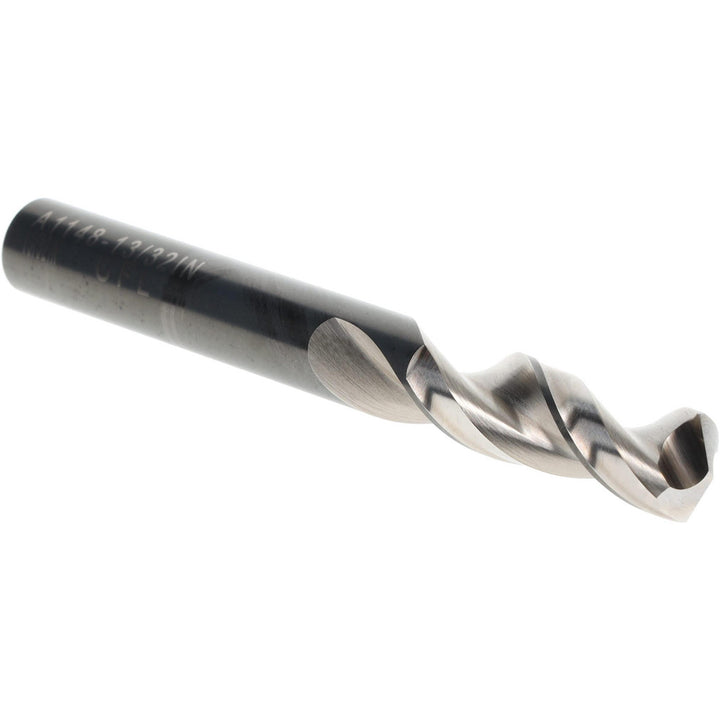

13/32" Vanadium High Speed Steel Drill Bit, 130° point - Walter-Titex 5057140
MFR# 5057140Series A1148
$40.94List $49.03
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
Description
The Walter-Titex 5057140 is a 13/32" Vanadium High Speed Steel drill bit, 130° point. Suited for aluminum alloy, aluminum silicon alloy, brass, copper alloy, stainless steel, steel. 1-11/16 flute length, 3-1/2 overall length. Series A1148.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.00106 to 0.00000 in; -0.022 to 0.000 mm
Drill bit gradeHigh Performance
Drill bit size in13/32
Drill bit size range0.4000 to 0.4500
Drill point angle130
Flute length in1-11/16
Flute typeParabolic
Overall length in3-1/2
Point typeSplit
Primary workpiece materialAluminum Alloy; Aluminum Silicon Alloy; Brass; Copper Alloy; Stainless Steel; Steel
Shank typeStraight-Cylindrical
Specification designationBS; DIN
Tool materialVanadium High Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
