Walter-Titex

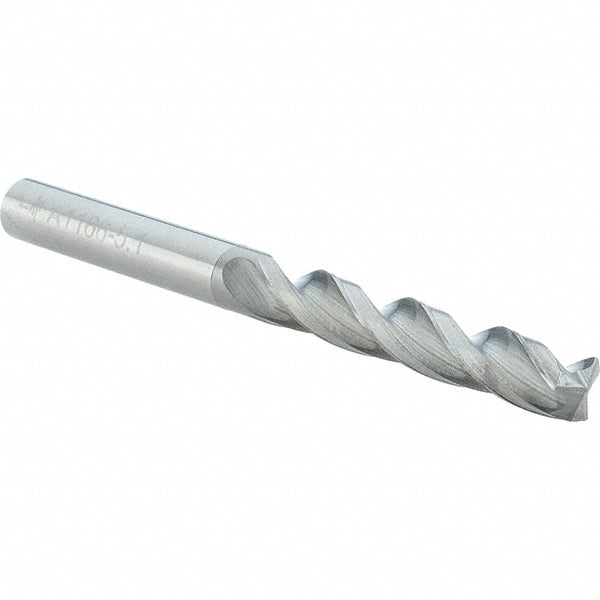

0.2008" Solid Carbide Screw Machine Drill Bit, 150° point - Walter-Titex 5057876
MFR# 5057876Series A1166
$70.31List $71.60
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Walter-Titex 5057876 is a 0.2008" Solid Carbide Screw Machine drill bit, 150° point. Series A1166.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit size0.2008
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle150
Drill point length0.0269
Flute by diameter ratio3xD
Flute length1.3780
Flute typeSpiral
Material gradeK30F
Maximum drilling depth1.0630
Number of flutes3
Overall length2.4409
Point typeMaximiza
Shank diameter (mm)5.10
Shank length1.0630
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
