Walter-Titex

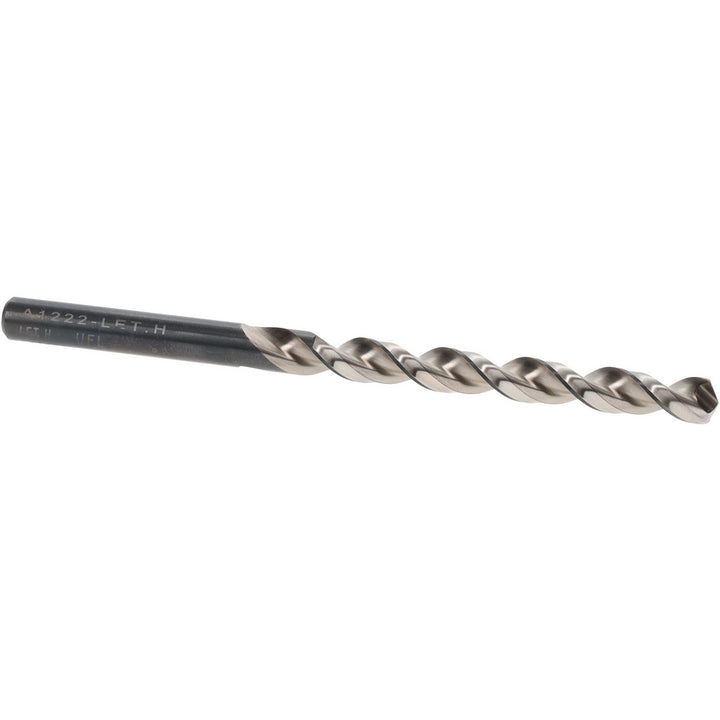

Letter H High Speed Steel Drill Bit, Oxide, 130° point - Walter-Titex 5059330
MFR# 5059330
$18.10List $22.03
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingOxide
Description
The Walter-Titex 5059330 is a Letter H High Speed Steel drill bit with a Oxide finish, 130° point. 2-23/32 flute length, 4-9/32 overall length.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size0.2660
Drill bit size letterH
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Flute length in2-23/32
Flute typeParabolic
Overall length in4-9/32
Point typeStandard
Shank diameter0.2660
Shank typeStraight-Cylindrical
Specification designationBS; DIN
Web configurationTapered
Web thinningWeb-Thinned
