Walter-Titex

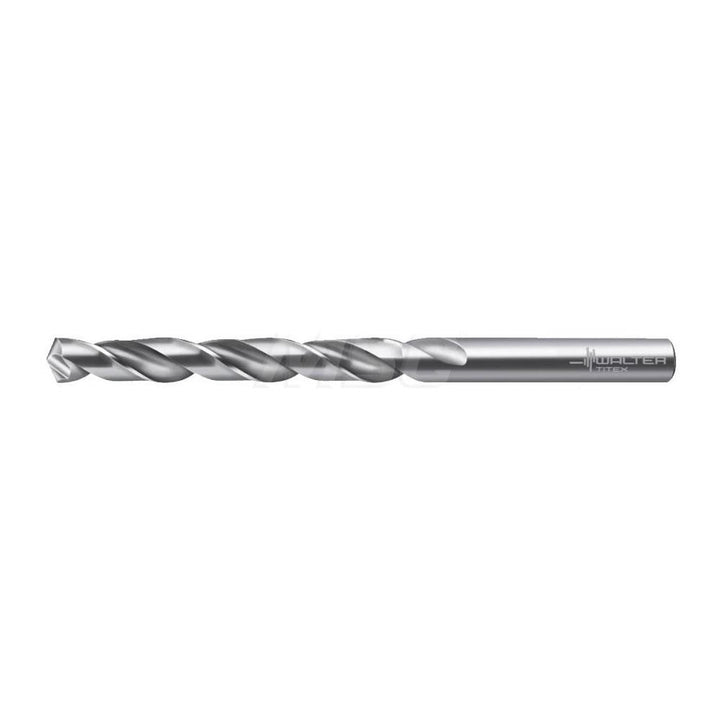

0.0965" Cobalt Drill Bit, 130° point - Walter-Titex 5060349
MFR# 5060349Series A1244
$11.32List $14.26
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Walter-Titex 5060349 is a 0.0965" Cobalt drill bit, 130° point. Suited for stainless steel, superalloys & titanium. Series A1244.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit materialCobalt
Drill bit size0.0965
Drill bit size range0.0500 - 0.1000
Drill point angle degrees130
Drill point length0.0225
Flute by diameter ratio8xD
Flute length1.1811
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.0236
Number of flutes2
Overall length2.2441
Point typeVA
Primary workpiece materialStainless Steel; Superalloys & Titanium
Shank diameter0.0965
Shank length1.0630
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
