Walter-Titex

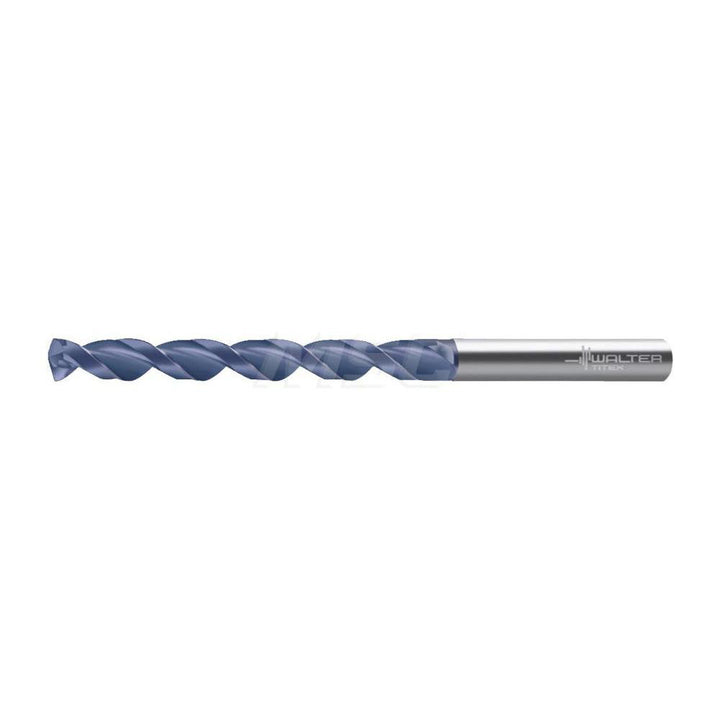

0.3150" Solid Carbide Drill Bit, Tinal Futura, 140° point - Walter-Titex 5061451
MFR# 5061451Series A1276TFL
$252.56List $252.73
Save 0%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Walter-Titex 5061451 is a 0.3150" Solid Carbide drill bit with a Tinal Futura finish, 140° point. Suited for cast iron, non-ferrous metal, steel. Series A1276TFL.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit finish coatingTinal Futura
Drill bit materialSolid Carbide
Drill bit size0.3150
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Drill point length0.0573
Flute by diameter ratio8xD
Flute length (mm)75.00
Flute typeParabolic
Material gradeK30F
Maximum drilling depth2.4410
Number of flutes2
Overall length (mm)117.00
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Shank diameter0.3150
Shank length1.6530
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
