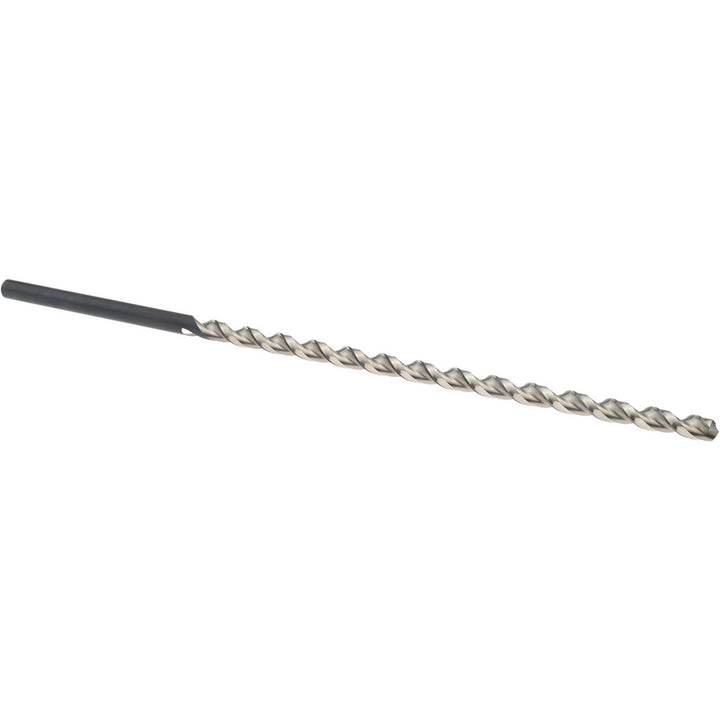

#4 High-Speed Steel Drill Bit, 130° point - Walter-Titex 5062532

Walter-Titex

#4 High-Speed Steel Drill Bit, 130° point - Walter-Titex 5062532

MFR# 5062532Series A1622

$34.54List $42.11 Save 17%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter-Titex 5062532 is a #4 High-Speed Steel drill bit, 130° point. Suited for cast iron, non-ferrous metal, steel. 5-1/2 flute length, 8-1/16 overall length. Series A1622.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm; +0.00000 to -0.00071 in
Drill bit size0.2090
Drill bit size wire#4
Drill point angle130
Flute by diameter ratio16xD
Flute length in5-1/2
Flute typeParabolic
Material gradeM2
Maximum drilling depth5.1570
Number of flutes2
Overall length in8-1/16
Point typeUFL
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Secondary workpiece materialCobalt; Iron; Nickel; Titanium Alloy
Shank diameter0.2090
Shank length2.5590
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1869-I
StandardsANSI; DIN 1869-I; ISO
Tool applicationBlind Hole; Stack Drilling
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
