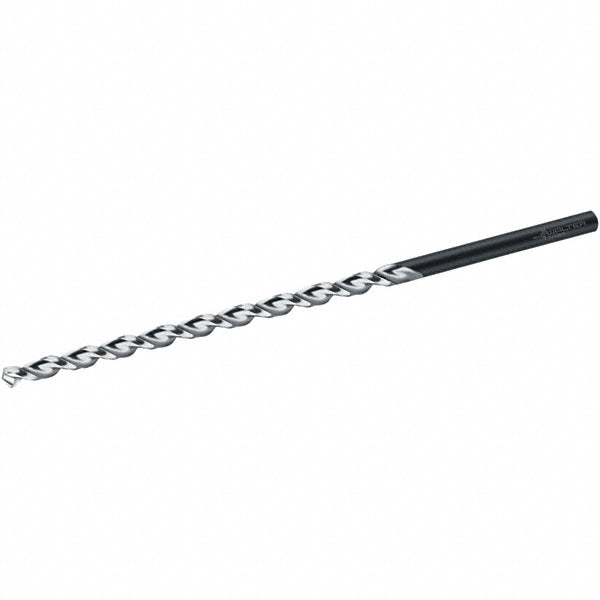

0.1890" High-Speed Steel Drill Bit, Oxide, 130° point - Walter-Titex 5062592

Walter-Titex

0.1890" High-Speed Steel Drill Bit, Oxide, 130° point - Walter-Titex 5062592

MFR# 5062592Series A1622

$32.66List $39.75 Save 17%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingOxide

Description

The Walter-Titex 5062592 is a 0.1890" High-Speed Steel drill bit with a Oxide finish, 130° point. Suited for cast iron, non-ferrous metal, steel. Series A1622.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.1890
Drill point angle130
Flute by diameter ratio16xD
Flute length5.3150
Flute typeParabolic
Material gradeM2
Maximum drilling depth5.0000
Number of flutes2
Overall length (mm)195.00
Point typeUFL
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Secondary workpiece materialCobalt; Iron; Nickel; Titanium Alloy
Shank diameter0.1890
Shank length2.3622
Shank typeStraight-Cylindrical
Specification designationDIN
StandardsANSI; DIN 1869-I; ISO
Tool applicationBlind Hole; Stack Drilling
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
