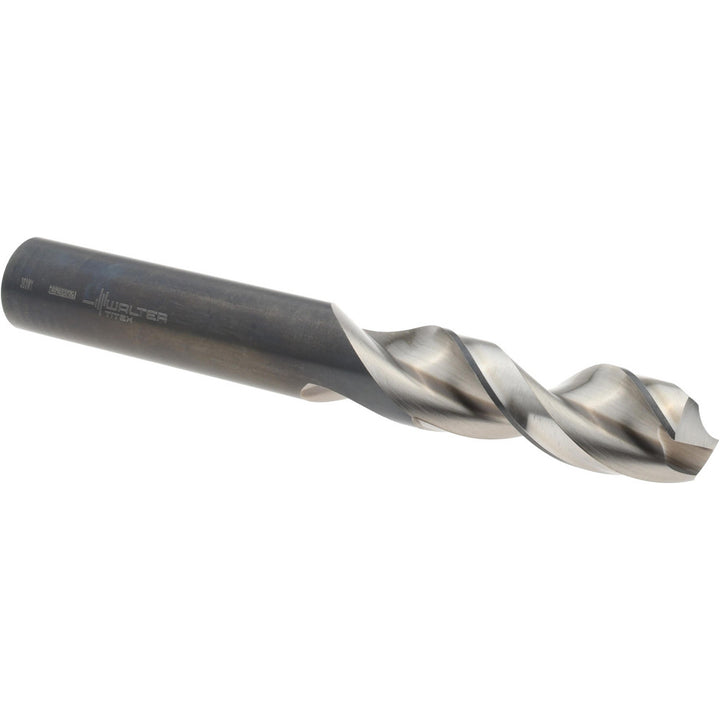

17/32" Vanadium High Speed Steel Drill Bit, 130° point - Walter-Titex 5153741

Walter-Titex

17/32" Vanadium High Speed Steel Drill Bit, 130° point - Walter-Titex 5153741

MFR# 5153741Series A1148

$58.40List $71.18 Save 17%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/32

Description

The Walter-Titex 5153741 is a 17/32" Vanadium High Speed Steel drill bit, 130° point. Suited for aluminum alloy, aluminum silicon alloy, brass, copper alloy, stainless steel, steel. 4-7/32 overall length. Series A1148.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.00106 to 0.00000 in; -0.022 to 0.000 mm
Drill bit gradeHigh Performance
Drill bit size in17/32
Drill bit size range0.5000 to 0.6000
Drill point angle130
Flute length (mm)54.00
Flute typeParabolic
Overall length in4-7/32
Point typeSplit
Primary workpiece materialAluminum Alloy; Aluminum Silicon Alloy; Brass; Copper Alloy; Stainless Steel; Steel
Shank typeStraight-Cylindrical
Specification designationBS; DIN
Tool materialVanadium High Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
