Walter-Titex

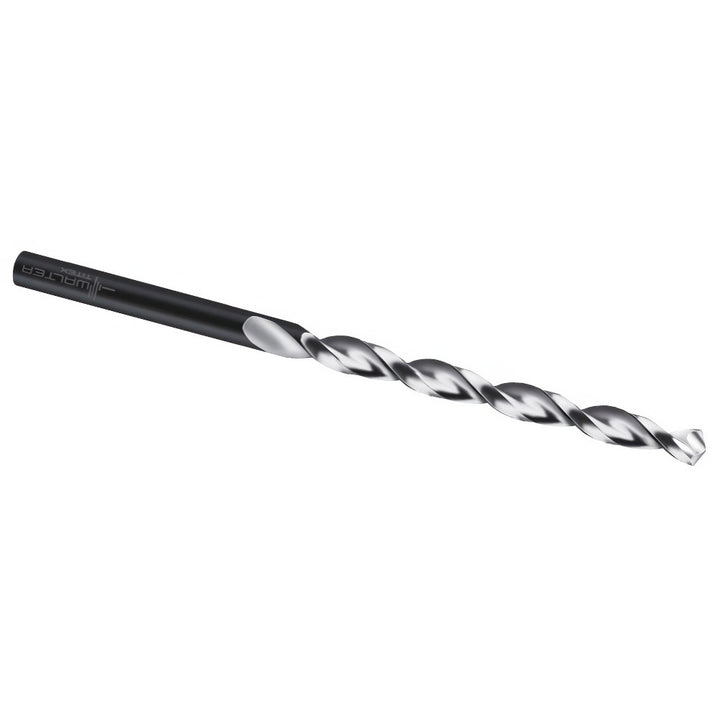

1/8" Cobalt Drill Bit, Black Oxide, 130° point - Walter-Titex 5154156
MFR# 5154156Series A1547
$20.98List $26.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
CoatingBlack Oxide
Description
The Walter-Titex 5154156 is a 1/8" Cobalt drill bit with a Black Oxide finish, 130° point. Series A1547.
Specifications
Coating finishBlack Oxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size in1/8
Drill point angle degrees130
Drill point length0.0291
Flute length2.7165
Flute length x diameter ratio12xD
Flute typeParabolic
Material gradeM35
Maximum drilling depth2.4803
Overall length (mm)106
Point typeConical+U
Shank diameter in1/8
Shank length1.4567
Shank typeParallel
Specification numberDIN 340
StandardsDIN 340
Threaded shankNo
Tool applicationBlind Hole; Stack Drilling; Through Hole Drilling
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
