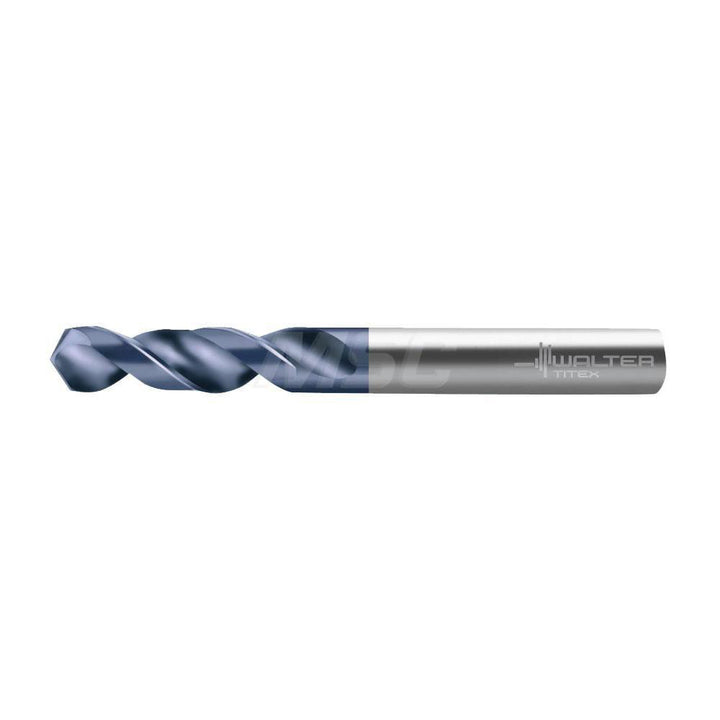

0.1890" Cobalt Screw Machine Drill Bit, Coated, 118° point - Walter-Titex 5200110

Walter-Titex

0.1890" Cobalt Screw Machine Drill Bit, Coated, 118° point - Walter-Titex 5200110

MFR# 5200110Series A1154TFT

$27.92List $31.44 Save 11%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Walter-Titex 5200110 is a 0.1890" Cobalt Screw Machine drill bit with a Coated finish, 118° point. Suited for non-ferrous metal, stainless steel. Series A1154TFT.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.1890
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle118
Drill point length0.0568
Flute by diameter ratio3xD
Flute length1.0236
Flute typeSpiral
Material gradeM35
Maximum drilling depth0.7087
Number of flutes2
Overall length2.4409
Point typeSix Facet
Primary workpiece materialNon-Ferrous Metal; Stainless Steel
Shank diameter (mm)4.80
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN; ISO
Tool materialCobalt
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
