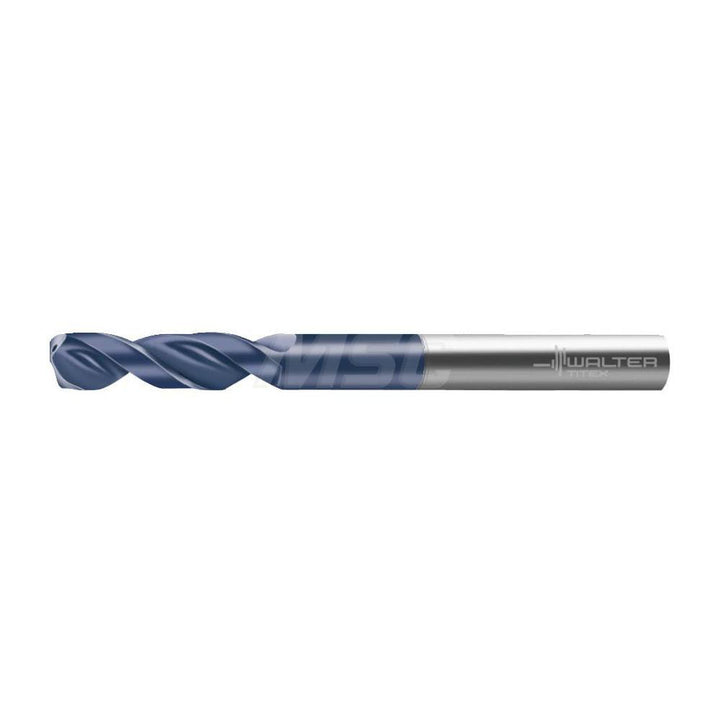

0.1772" Solid Carbide Screw Machine Drill Bit, 150° point - Walter-Titex 5200214

Walter-Titex

0.1772" Solid Carbide Screw Machine Drill Bit, 150° point - Walter-Titex 5200214

MFR# 5200214Series A6181TFT

$136.41List $174.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter-Titex 5200214 is a 0.1772" Solid Carbide Screw Machine drill bit, 150° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series A6181TFT.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit size0.1772
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle150
Drill point length0.0237
Flute by diameter ratio3xD
Flute length0.9449
Flute typeSpiral
Material gradeK30F
Maximum drilling depth0.5512
Number of flutes2
Overall length2.9134
Point typeForm V+A
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2362
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
