Walter-Titex

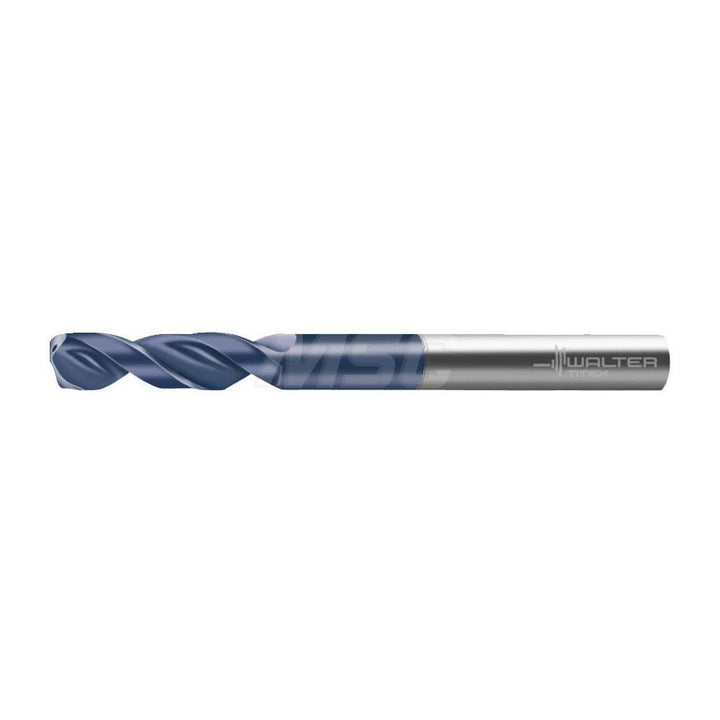

1/8" Solid Carbide Screw Machine Drill Bit, Coated, 150° point - Walter-Titex 5200221
MFR# 5200221Series A6181TFT
$167.43List $211.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes2
CoatingCoated
Description
The Walter-Titex 5200221 is a 1/8" Solid Carbide Screw Machine drill bit with a Coated finish, 150° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series A6181TFT.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit size in1/8
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle150
Drill point length0.0167
Flute by diameter ratio3xD
Flute length0.7874
Flute typeSpiral
Material gradeK30F
Maximum drilling depth0.4724
Number of flutes2
Overall length2.5984
Point typeForm V+A
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter (mm)6.00
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
