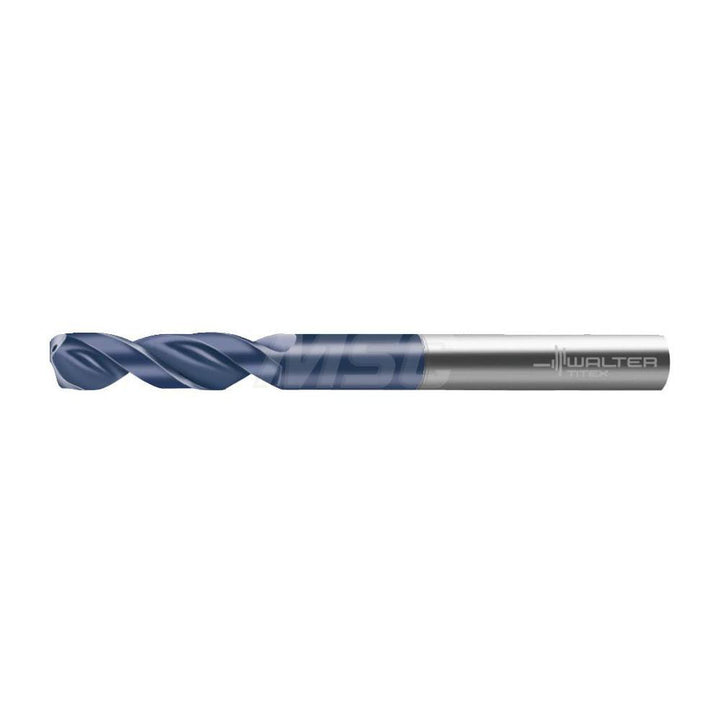

0.2040" Solid Carbide Drill Bit, TiNAl, 150° point - Walter-Titex 5200223

Walter-Titex

0.2040" Solid Carbide Drill Bit, TiNAl, 150° point - Walter-Titex 5200223

MFR# 5200223Series A6181TFT

$136.41List $174.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiNAl

Description

The Walter-Titex 5200223 is a 0.2040" Solid Carbide drill bit with a TiNAl finish, 150° point. Suited for cast iron, aluminum & non-ferrous, stainless steel, steel, high-temp alloy. Series A6181TFT.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit materialSolid Carbide
Drill bit size0.2040
Drill bit size range0.2000 - 0.2500
Drill point angle degrees150
Drill point length0.0316
Flute by diameter ratio2xD
Flute length1.1000
Flute typeRegular Spiral
Maximum drilling depth0.7480
Number of flutes2
Overall length3.2300
Point typePilot
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; Stainless Steel; Steel; High-Temp Alloy
Shank diameter0.2360
Shank length1.4170
Shank typeStraight
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
