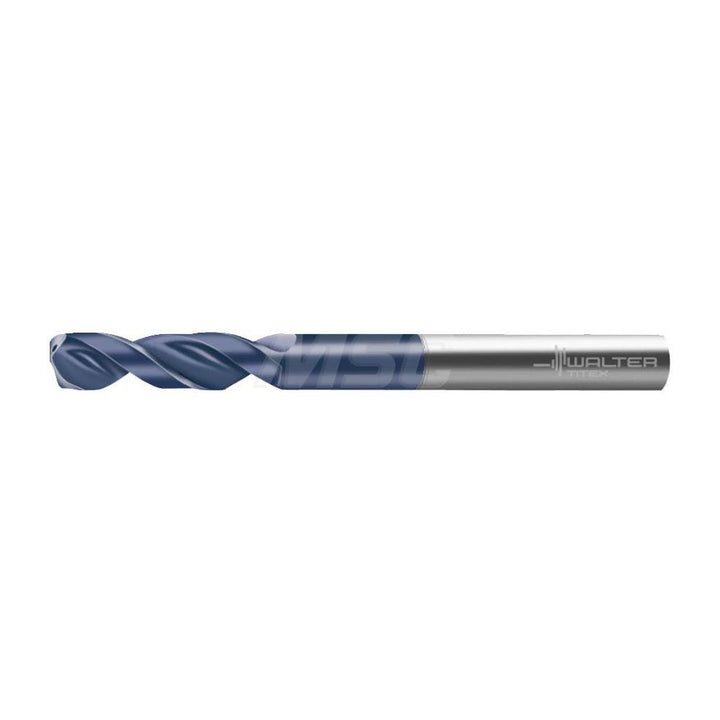

0.2165" Solid Carbide Screw Machine Drill Bit, 150° point - Walter-Titex 5200224

Walter-Titex

0.2165" Solid Carbide Screw Machine Drill Bit, 150° point - Walter-Titex 5200224

MFR# 5200224Series A6181TFT

$136.41List $174.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter-Titex 5200224 is a 0.2165" Solid Carbide Screw Machine drill bit, 150° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series A6181TFT.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit size0.2165
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle150
Drill point length0.0290
Flute by diameter ratio3xD
Flute length1.1024
Flute typeSpiral
Material gradeK30F
Maximum drilling depth0.6299
Number of flutes2
Overall length3.2284in
Point typeForm V+A
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2362
Shank length1.4173in
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
