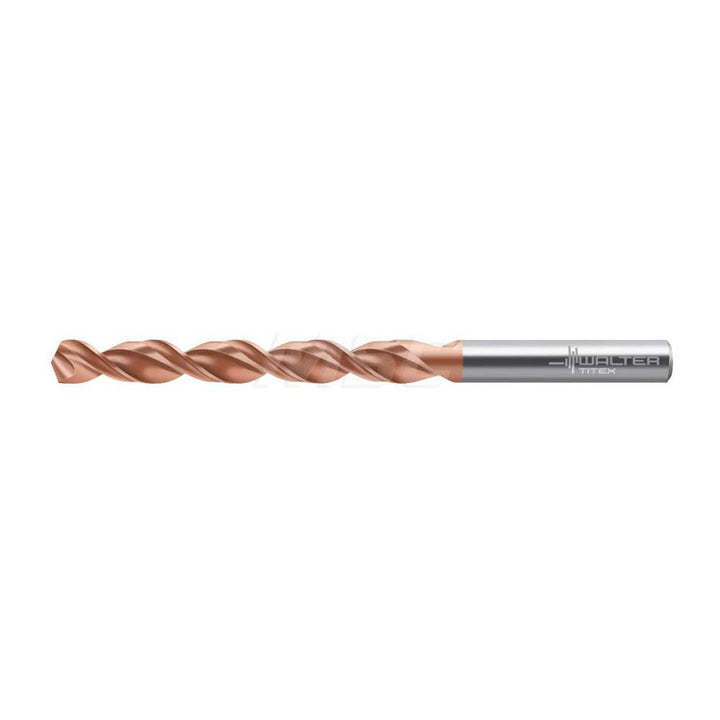

0.1102" Cobalt Drill Bit, AlCrN, 130° point - Walter-Titex 5236531

Walter-Titex

0.1102" Cobalt Drill Bit, AlCrN, 130° point - Walter-Titex 5236531

MFR# 5236531Series A1249XPL

$22.69List $27.66 Save 17%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlCrN

Description

The Walter-Titex 5236531 is a 0.1102" Cobalt drill bit with a AlCrN finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1249XPL.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingAlCrN
Drill bit materialCobalt
Drill bit size0.1102
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Drill point length0.0257
Flute by diameter ratio5xD
Flute length1.2992
Flute typeParabolic
Material gradeM35
Maximum drilling depth1.1024
Number of flutes2
Overall length2.4016
Point typeUFL
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.1102
Shank length1.1024
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
