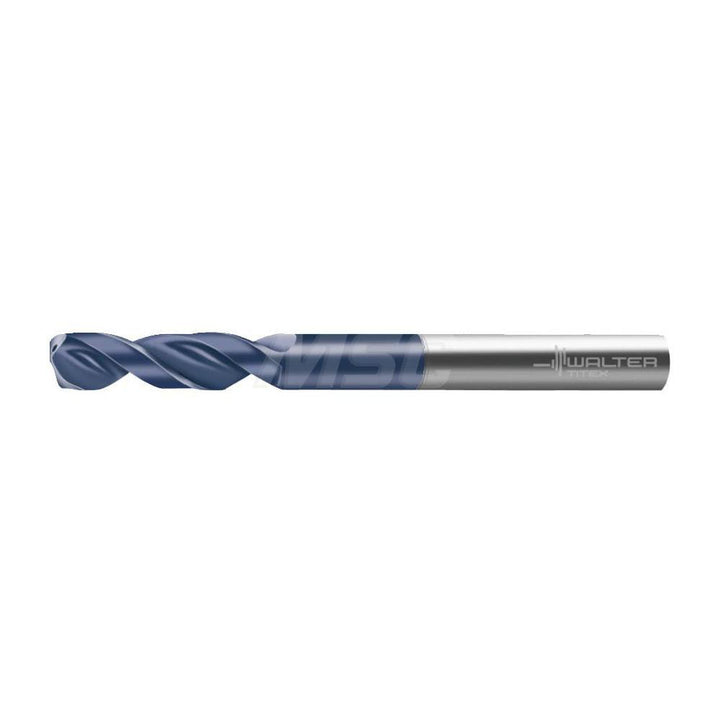

9/32" Solid Carbide Screw Machine Drill Bit, Coated, 150° point - Walter-Titex 5293773

Walter-Titex

9/32" Solid Carbide Screw Machine Drill Bit, Coated, 150° point - Walter-Titex 5293773

MFR# 5293773Series A6181TFT

$150.48List $193.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/32
Flutes0
CoatingCoated

Description

The Walter-Titex 5293773 is a 9/32" Solid Carbide Screw Machine drill bit with a Coated finish, 150° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series A6181TFT.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit size in9/32
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle150
Drill point length0.0364
Flute by diameter ratio2xD
Flute length (mm)41.00
Flute typeSpiral
Material gradeK30F
Maximum drilling depth1.1420
Number of flutes0
Overall length (mm)91.00
Point typeStandard
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter (mm)8.00
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
