Walter-Titex

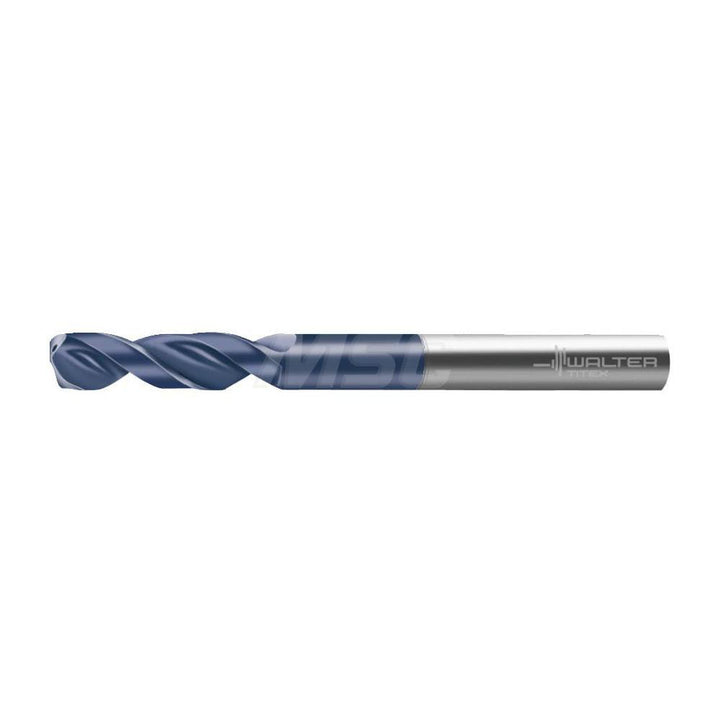

7/16" Solid Carbide Screw Machine Drill Bit, Coated, 150° point - Walter-Titex 5293782
MFR# 5293782Series A6181TFT
$318.99List $402.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes2
CoatingCoated
Description
The Walter-Titex 5293782 is a 7/16" Solid Carbide Screw Machine drill bit with a Coated finish, 150° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series A6181TFT.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit size in7/16
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle150
Drill point length0.0588
Flute by diameter ratio3xD
Flute length2.1654
Flute typeSpiral
Material gradeK30F
Maximum drilling depth1.2205
Number of flutes2
Overall length4.6457
Point typeForm V+A
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter (mm)12.00
Shank length1.7717
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
