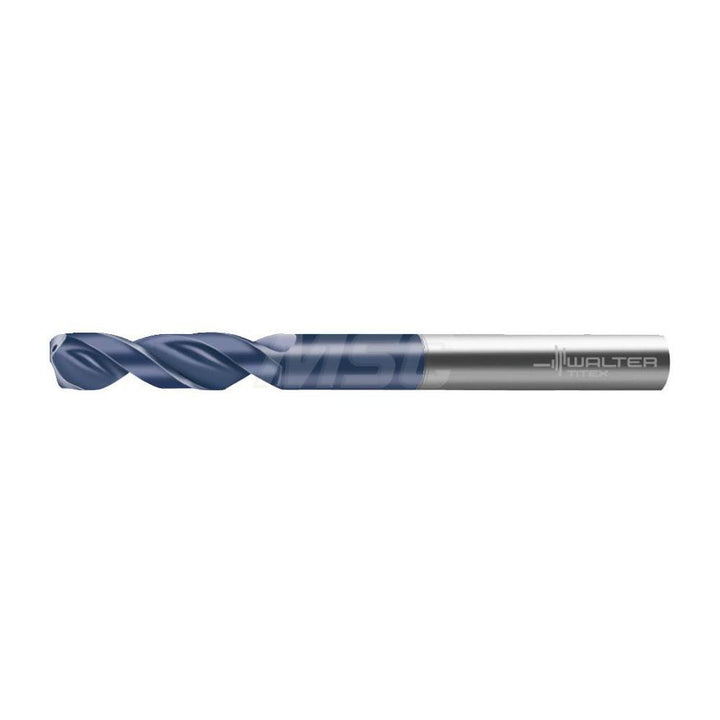

0.6299" Solid Carbide Screw Machine Drill Bit, TiNAl, 150° point - Walter-Titex 5293791

Walter-Titex

0.6299" Solid Carbide Screw Machine Drill Bit, TiNAl, 150° point - Walter-Titex 5293791

MFR# 5293791Series A6181TFT

$432.82List $555.12 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiNAl

Description

The Walter-Titex 5293791 is a 0.6299" Solid Carbide Screw Machine drill bit with a TiNAl finish, 150° point. Suited for steel, stainless steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series A6181TFT.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit size0.6299
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle150
Drill point length0.0844
Flute by diameter ratio3xD
Flute length2.5591
Flute typeRegular Spiral
Material gradeK30F
Maximum drilling depth1.2992
Number of flutes2
Overall length5.2362
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.6299
Shank length1.8898
Shank typeStraight
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
