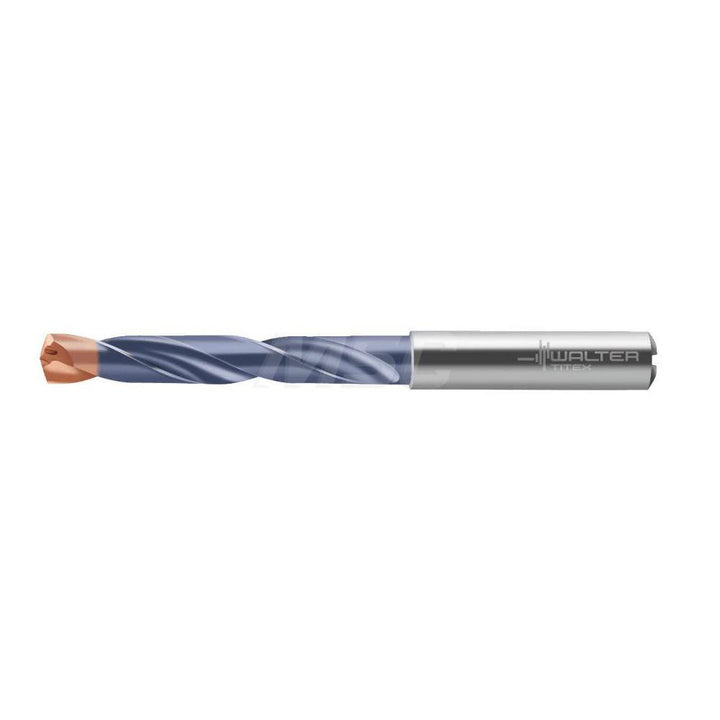

0.2756" Solid Carbide Drill Bit, Double; TiAlN, 140° point - Walter-Titex 5337053

Walter-Titex

0.2756" Solid Carbide Drill Bit, Double; TiAlN, 140° point - Walter-Titex 5337053

MFR# 5337053Series A3389DPL

$231.65
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter-Titex 5337053 is a 0.2756" Solid Carbide drill bit with a Double; TiAlN finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel, superalloys & titanium. Series A3389DPL.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit finish coatingDouble; TiAlN
Drill bit materialSolid Carbide
Drill bit size0.2756
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Drill point length0.0502
Flute by diameter ratio5xD
Flute length2.0866
Flute typeSpiral
Material gradeK30F
Maximum drilling depth1.6929
Number of flutes2
Overall length3.5827
Point typeX-treme Plus
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel; Superalloys & Titanium
Shank diameter0.3150
Shank length1.4173
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
