#53 Cobalt Screw Machine Drill Bit, Coated, 130° point - Walter-Titex 5337198

Walter-Titex

#53 Cobalt Screw Machine Drill Bit, Coated, 130° point - Walter-Titex 5337198

MFR# 5337198Series A1149XPL

$17.04List $20.74 Save 17%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

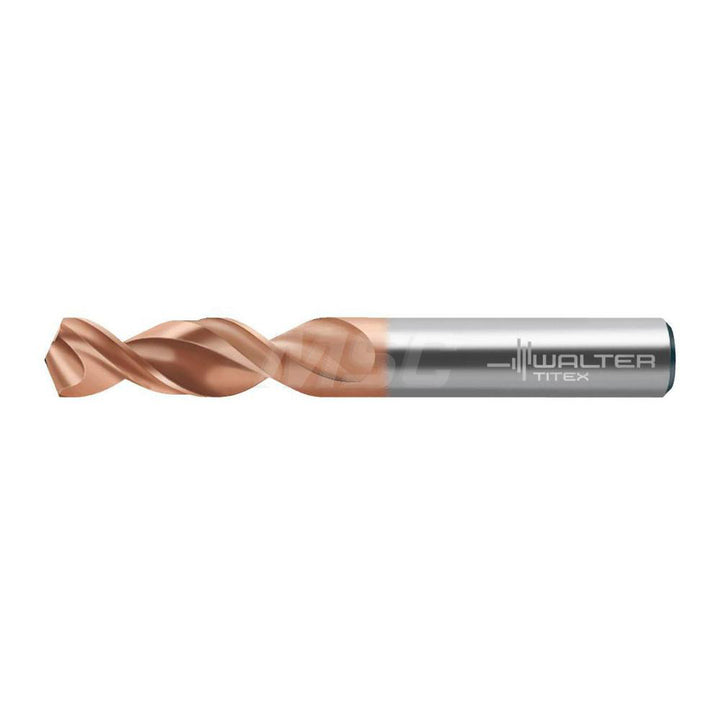

The Walter-Titex 5337198 is a #53 Cobalt Screw Machine drill bit with a Coated finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1149XPL.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.0595
Drill bit size range0.0000 to 0.1000
Drill bit size wire#53
Drill length typeScrew Machine
Drill point angle130
Drill point length0.0139
Flute by diameter ratio3xD
Flute length0.3937
Flute typeParabolic
Material gradeM35
Maximum drilling depth0.2756
Number of flutes2
Overall length1.3386
Point typeConical+C
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter (mm)1.51
Shank length0.9449
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN; ISO
Tool materialCobalt
Tool performanceUniversal
Web configurationTapered
