#7 Cobalt Screw Machine Drill Bit, Coated, 130° point - Walter-Titex 5337207

Walter-Titex

#7 Cobalt Screw Machine Drill Bit, Coated, 130° point - Walter-Titex 5337207

MFR# 5337207Series A1149XPL

$21.20List $26.53 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

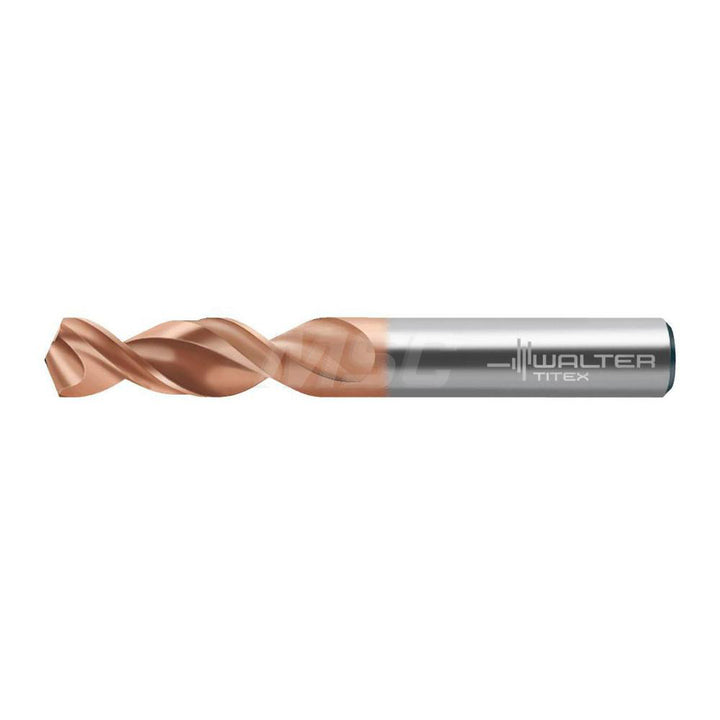

The Walter-Titex 5337207 is a #7 Cobalt Screw Machine drill bit with a Coated finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1149XPL.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.2010
Drill bit size range0.2000 to 0.2500
Drill bit size wire#7
Drill length typeScrew Machine
Drill point angle130
Drill point length0.0469
Flute by diameter ratio3xD
Flute length1.0236
Flute typeParabolic
Material gradeM35
Maximum drilling depth0.7087
Number of flutes2
Overall length2.4409
Point typeConical+U
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter (mm)5.11
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN; ISO
Tool materialCobalt
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
