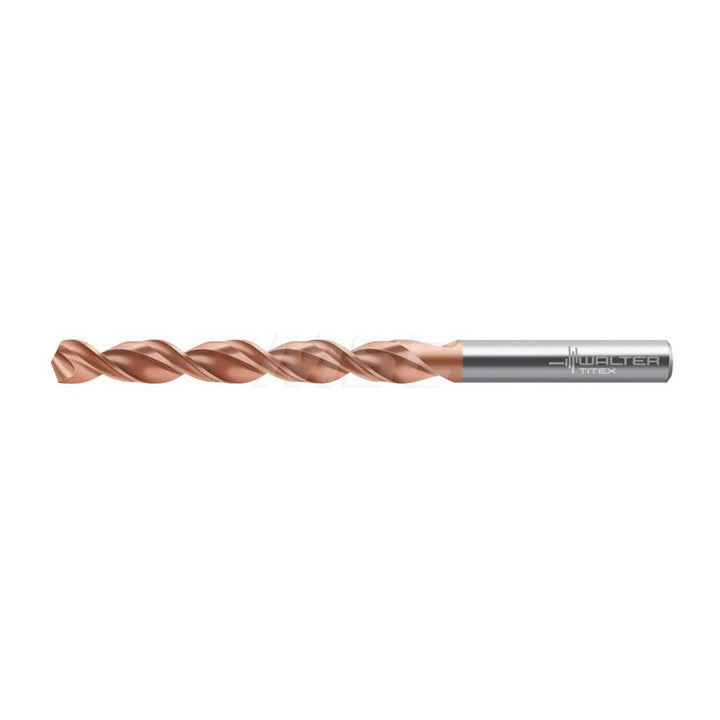

1/4" Cobalt Drill Bit, AlCrN, 130° point - Walter-Titex 5337271

Walter-Titex

1/4" Cobalt Drill Bit, AlCrN, 130° point - Walter-Titex 5337271

MFR# 5337271Series A1249XPL

$34.05List $42.61 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/4
Flutes2
CoatingAlCrN

Description

The Walter-Titex 5337271 is a 1/4" Cobalt drill bit with a AlCrN finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1249XPL.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingAlCrN
Drill bit materialCobalt
Drill bit size in1/4
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Drill point length0.0583
Flute by diameter ratio5xD
Flute length2.4803
Flute typeParabolic
Material gradeM35
Maximum drilling depth2.0472
Number of flutes2
Overall length3.9764
Point typeUFL
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in1/4
Shank length1.4961
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
