Walter-Titex

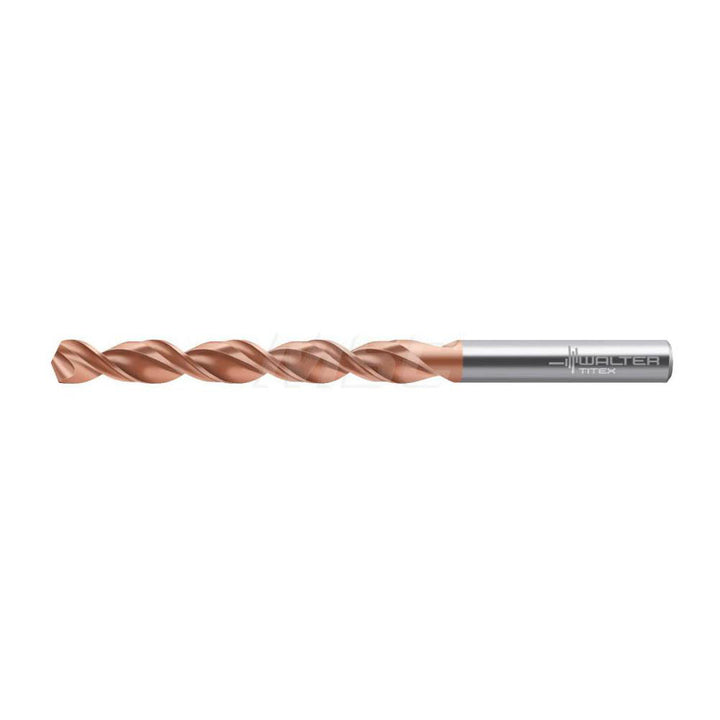

1/16" Cobalt Drill Bit, AlCrN, 130° point - Walter-Titex 5337273
MFR# 5337273Series A1249XPL
$24.74List $29.59
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Flutes2
CoatingAlCrN
Description
The Walter-Titex 5337273 is a 1/16" Cobalt drill bit with a AlCrN finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1249XPL.
Specifications
Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingAlCrN
Drill bit materialCobalt
Drill bit size in1/16
Drill bit size range0.0500 - 0.1000
Drill point angle degrees130
Drill point length0.0146
Flute by diameter ratio5xD
Flute length0.7874
Flute typeParabolic
Material gradeM35
Maximum drilling depth0.6693
Number of flutes2
Overall length1.6929
Point typeUFL
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in1/16
Shank length0.9055
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
