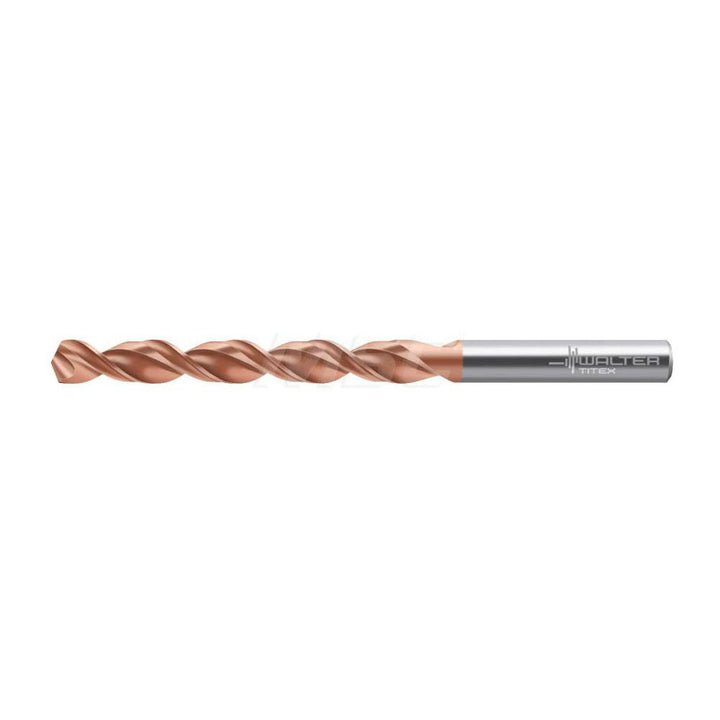

5/16" Cobalt Drill Bit, AlCrN, 130° point - Walter-Titex 5337276

Walter-Titex

5/16" Cobalt Drill Bit, AlCrN, 130° point - Walter-Titex 5337276

MFR# 5337276Series A1249XPL

$51.93List $63.30 Save 17%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/16
Flutes2
CoatingAlCrN

Description

The Walter-Titex 5337276 is a 5/16" Cobalt drill bit with a AlCrN finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1249XPL.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingAlCrN
Drill bit materialCobalt
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Drill point length0.0729
Flute by diameter ratio5xD
Flute length2.9528
Flute typeParabolic
Material gradeM35
Maximum drilling depth2.4409
Number of flutes2
Overall length4.6063
Point typeUFL
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in5/16
Shank length1.6535
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
