Walter-Titex

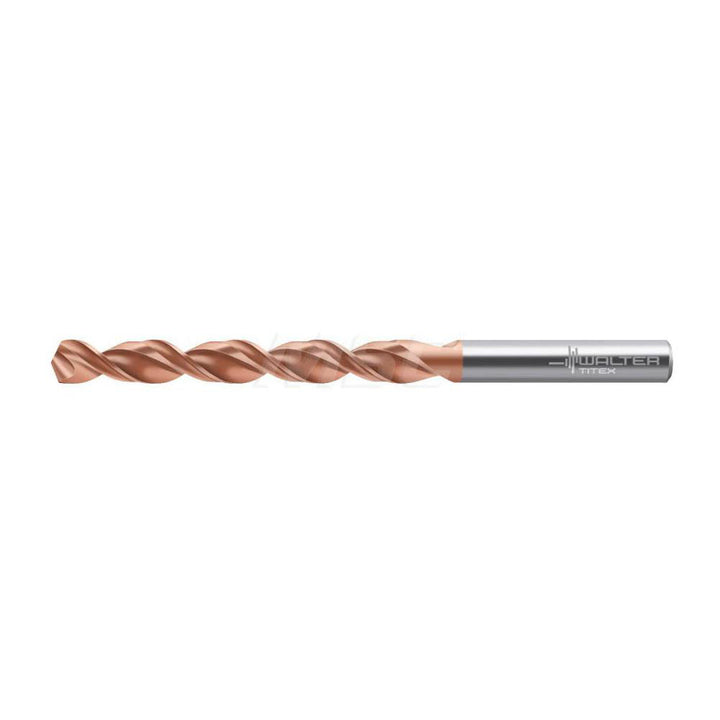

#16 Vanadium High Speed Steel Drill Bit, Xtreme Performance, 130° point - Walter-Titex 5337285
MFR# 5337285Series A1249XPL
$26.75List $32.61
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Walter-Titex 5337285 is a #16 Vanadium High Speed Steel drill bit with a Xtreme Performance finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1249XPL.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.012 mm; +0.00000 to -0.00071 in
Drill bit finish coatingXtreme Performance
Drill bit materialVanadium High Speed Steel
Drill bit size0.1770
Drill bit size range0.1500 - 0.2000
Drill bit size wire#16
Drill point angle degrees130
Drill point length0.0413
Flute by diameter ratio8xD
Flute length (mm)47.00
Flute typeSpiral
Maximum drilling depth1.5350
Overall length (mm)80.00
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.1770
Shank length1.3000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationParallel
Web thinningWeb-Thinned
