Walter-Titex

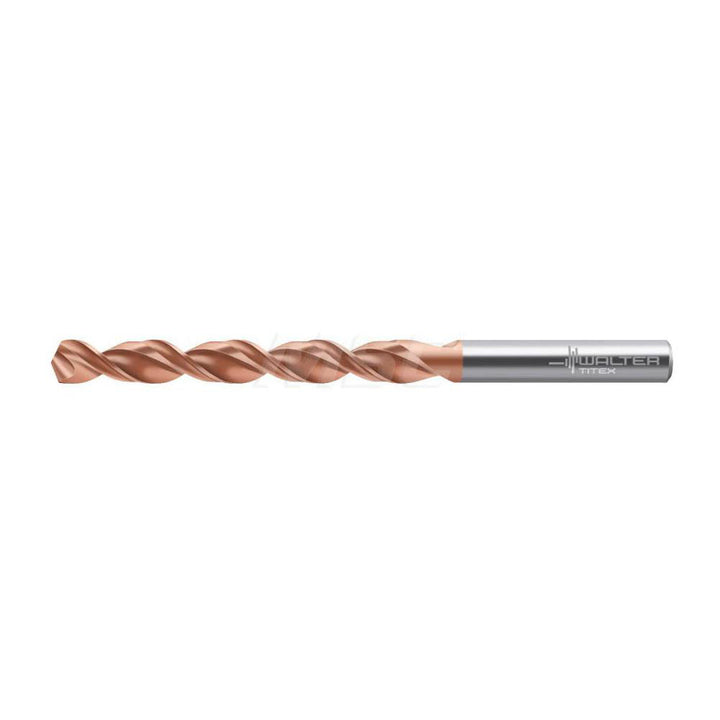

17/64" Cobalt Drill Bit, AlCrN, 130° point - Walter-Titex 5337342
MFR# 5337342Series A1249XPL
$39.98List $49.17
Save 18%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
CoatingAlCrN
Description
The Walter-Titex 5337342 is a 17/64" Cobalt drill bit with a AlCrN finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1249XPL.
Specifications
Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingAlCrN
Drill bit materialCobalt
Drill bit size in17/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Drill point length0.0619
Flute by diameter ratio5xD
Flute length2.7165
Flute typeParabolic
Material gradeM35
Maximum drilling depth2.2441
Number of flutes2
Overall length4.2913
Point typeUFL
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in17/64
Shank length1.5748
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
