Walter-Titex

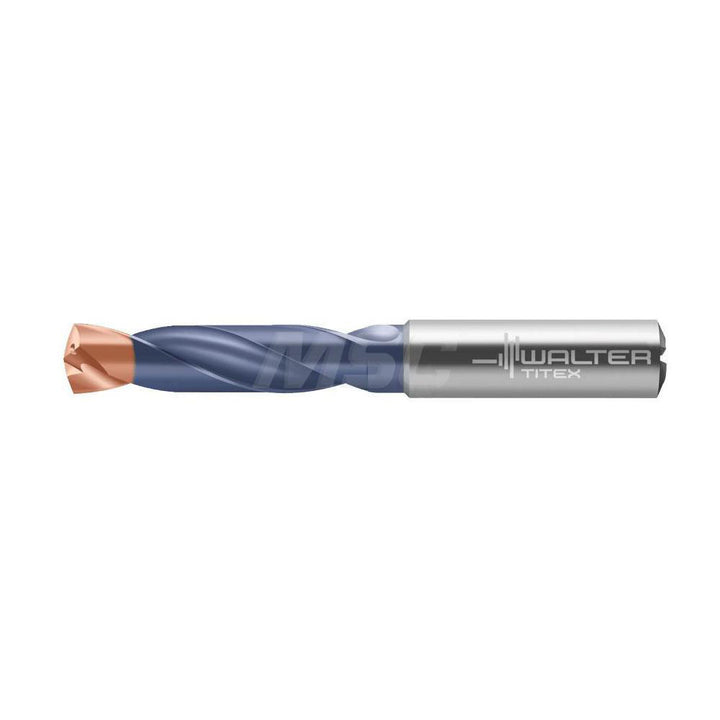

0.2283" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 5537161
MFR# 5537161Series A3289DPL
$204.00
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Walter-Titex 5537161 is a 0.2283" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series A3289DPL.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.2283
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0416
Drill tip finish coatingDouble Coating
Flute by diameter ratio3xD
Flute length1.1024
Flute typeSpiral
Material gradeK30F
Maximum drilling depth0.7874
Number of flutes2
Overall length2.5984
Point typeX-treme Plus
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter (mm)6.00
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
