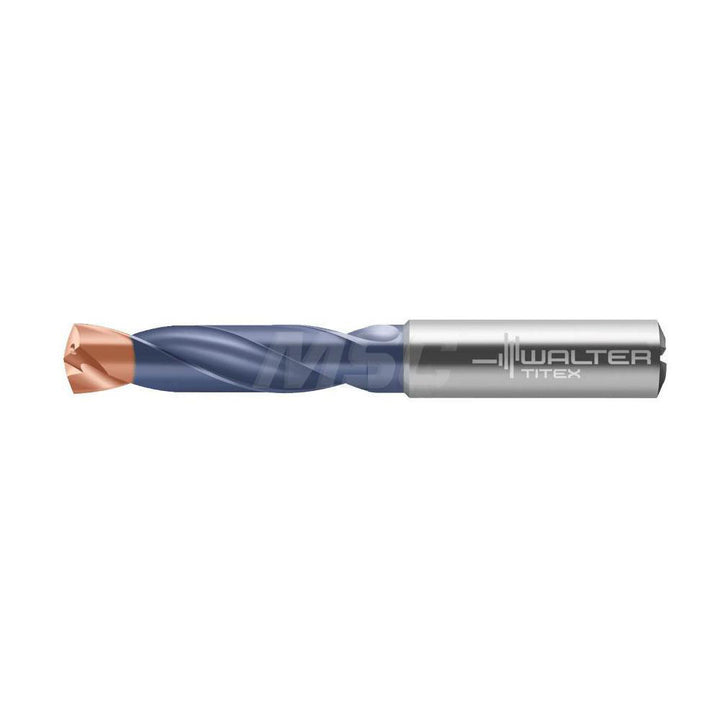

0.2756" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 5537176

Walter-Titex

0.2756" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 5537176

MFR# 5537176Series A3289DPL

$184.91
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Walter-Titex 5537176 is a 0.2756" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series A3289DPL.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.2756
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0502
Drill tip finish coatingDouble Coating
Flute by diameter ratio3xD
Flute length1.3386
Flute typeSpiral
Material gradeK30F
Maximum drilling depth0.9449
Number of flutes2
Overall length3.1102
Point typeX-treme Plus
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter (mm)8.00
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
