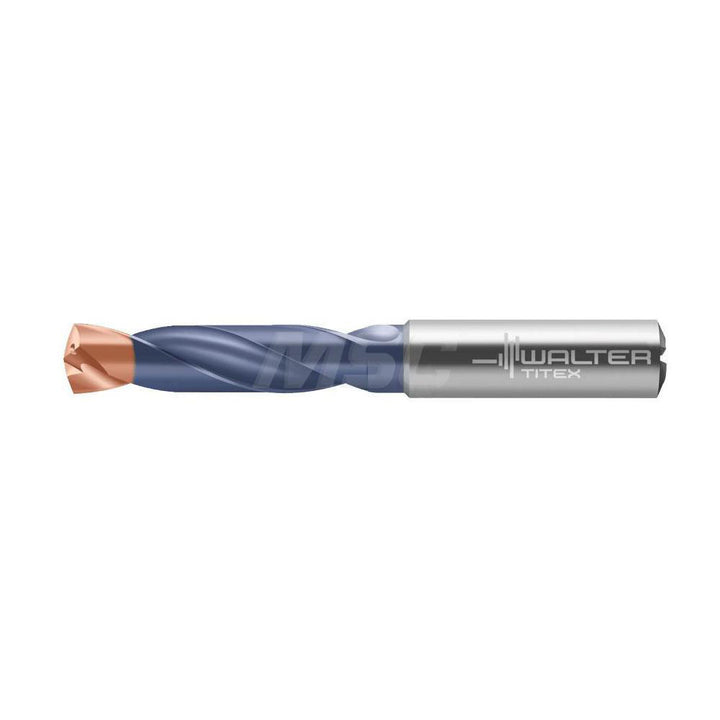

0.3346" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 5537193

Walter-Titex

0.3346" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 5537193

MFR# 5537193Series A3289DPL

$216.04
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Walter-Titex 5537193 is a 0.3346" Solid Carbide Screw Machine drill bit, 140° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series A3289DPL.

Specifications

Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.3346
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0609
Drill tip finish coatingDouble Coating
Flute by diameter ratio3xD
Flute length1.8504
Flute typeSpiral
Material gradeK30F
Maximum drilling depth1.3780
Number of flutes2
Overall length3.5039
Point typeX-treme Plus
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.3937
Shank length1.5748
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
