Walter-Titex

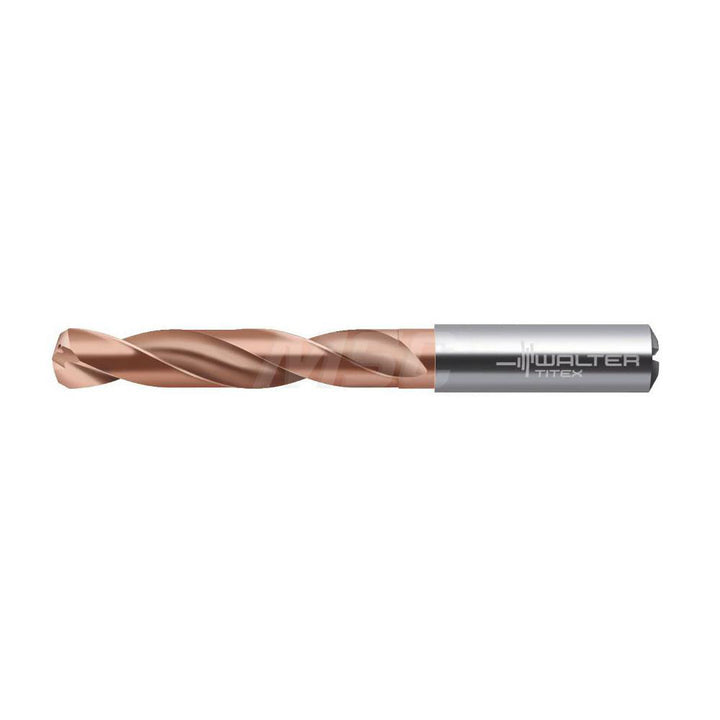

0.2677" Solid Carbide Drill Bit, AlCrN, 140° point - Walter-Titex 5834245
MFR# 5834245Series A3382XPL
$231.65
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingAlCrN
Description
The Walter-Titex 5834245 is a 0.2677" Solid Carbide drill bit with a AlCrN finish, 140° point. Suited for cast iron. Series A3382XPL.
Specifications
Coating finishAlCrN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.2677
Drill bit size range0.2500 - 0.3000
Drill point angle degrees140
Drill point length0.0487
Flute by diameter ratio5xD
Flute length2.0866
Flute typeSpiral
Material gradeK30F
Maximum drilling depth1.6929
Number of flutes2
Overall length3.5827
Point typeX-treme CI
Primary workpiece materialCast Iron
Shank diameter0.3150
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
