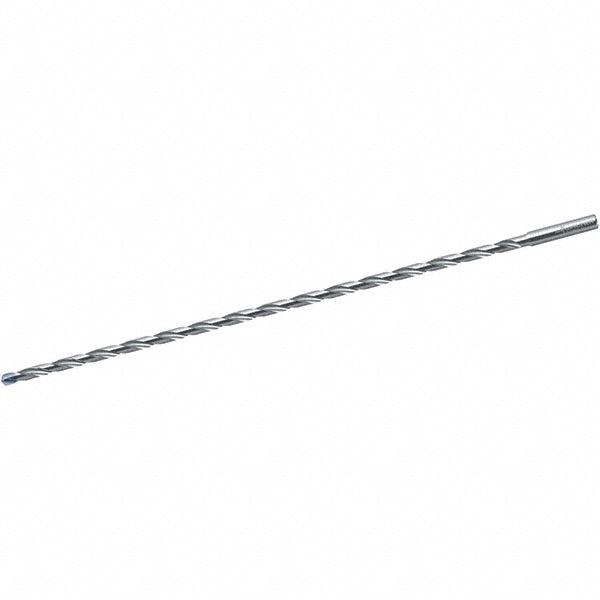

1/4" Solid Carbide Drill Bit, TiNAl, 130° point - Walter-Titex 6280447

Walter-Titex

1/4" Solid Carbide Drill Bit, TiNAl, 130° point - Walter-Titex 6280447

MFR# 6280447Series A7495TTP

$1,099.50List $1,219.31 Save 9%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/4
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6280447 is a 1/4" Solid Carbide drill bit with a TiNAl finish, 130° point. Suited for cast iron, non-ferrous metal, steel. Series A7495TTP.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit size in1/4
Drill point angle130
Flute by diameter ratio40xD
Flute length11.1024
Flute typeSpiral
Material gradeK30F
Maximum drilling depth10.7087
Number of flutes2
Overall length (mm)324.00
Point typeX-treme D
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Secondary workpiece materialStainless Steel
Shank diameter0.3150
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsANSI; DIN 6535 HA; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
Web configurationTapered
Web thinningWeb-Thinned
