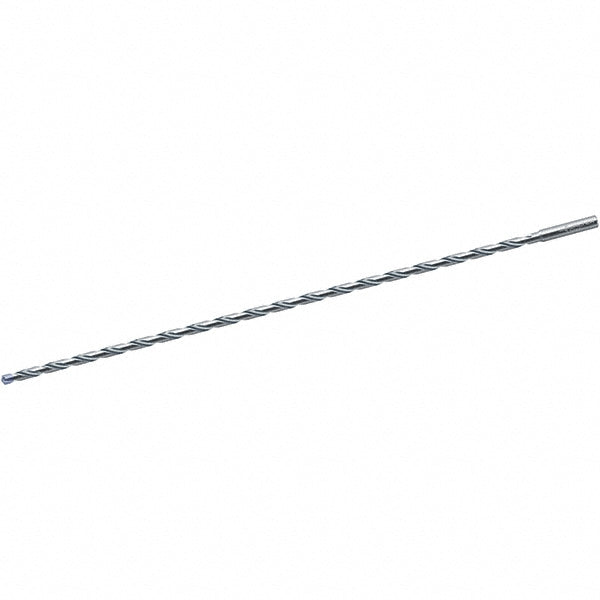

0.2360" Solid Carbide Drill Bit, TiNAl, 130° point - Walter-Titex 6280500

Walter-Titex

0.2360" Solid Carbide Drill Bit, TiNAl, 130° point - Walter-Titex 6280500

MFR# 6280500Series A7595TTP

$1,225.13List $1,358.64 Save 9%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6280500 is a 0.2360" Solid Carbide drill bit with a TiNAl finish, 130° point. Suited for cast iron, non-ferrous metal, steel. 14 overall length. Series A7595TTP.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancee7
Drill bit size0.2360
Drill point angle130
Flute by diameter ratio50xD
Flute length11.8000
Flute typeSpiral
Maximum drilling depth11.8000
Number of flutes2
Overall length in14
Point typeProprietary
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel
Secondary workpiece materialStainless Steel
Shank diameter0.2360
Shank length1.4173
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsANSI; DIN 6535 HA; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
