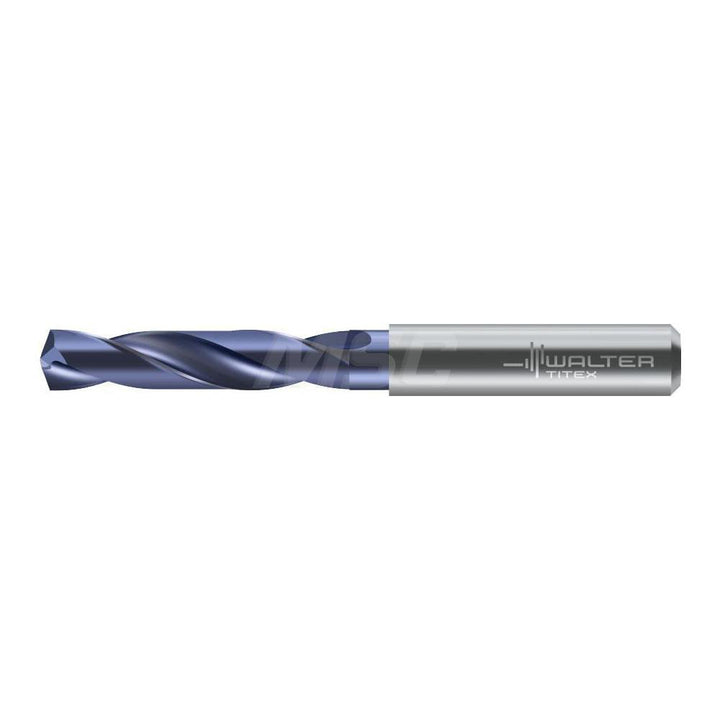

0.1690" Solid Carbide Screw Machine Drill Bit, TiNAl, 140° point - Walter-Titex 6618074

Walter-Titex

0.1690" Solid Carbide Screw Machine Drill Bit, TiNAl, 140° point - Walter-Titex 6618074

MFR# 6618074Series DC150-03-A0

$51.17List $65.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingTiNAl

Description

The Walter-Titex 6618074 is a 0.1690" Solid Carbide Screw Machine drill bit with a TiNAl finish, 140° point. Suited for steel, cast iron. 3 overall length. Series DC150-03-A0.

Specifications

Coating finishTiNAl
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.1690
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0308
Flute by diameter ratio3xD
Flute length0.5070
Flute typeRegular Spiral
Maximum drilling depth0.5070
Number of flutes3
Overall length in3
Point typeSpecial
Primary workpiece materialSteel; Cast Iron
Shank diameter0.2360
Shank length1.4173
Shank typeStraight
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
