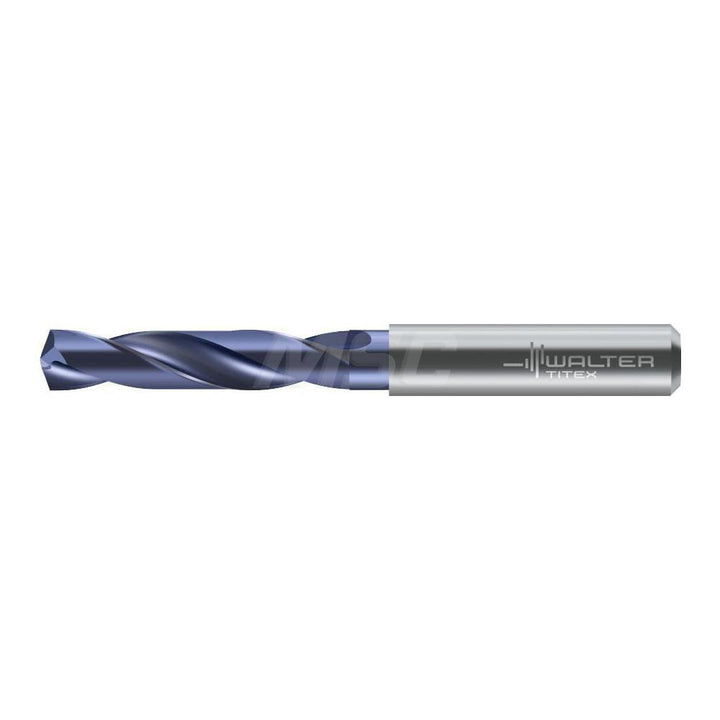

0.3740" Solid Carbide Screw Machine Drill Bit, TiNAl, 140° point - Walter-Titex 6618140

Walter-Titex

0.3740" Solid Carbide Screw Machine Drill Bit, TiNAl, 140° point - Walter-Titex 6618140

MFR# 6618140Series DC150-03-A0

$71.62List $91.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
CoatingTiNAl

Description

The Walter-Titex 6618140 is a 0.3740" Solid Carbide Screw Machine drill bit with a TiNAl finish, 140° point. Suited for steel, cast iron. 4 overall length. Series DC150-03-A0.

Specifications

Coating finishTiNAl
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.3740
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0681
Flute by diameter ratio3xD
Flute length1.1220
Flute typeRegular Spiral
Maximum drilling depth1.1220
Number of flutes3
Overall length in4
Point typeSpecial
Primary workpiece materialSteel; Cast Iron
Shank diameter0.3940
Shank length1.5748
Shank typeStraight
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
