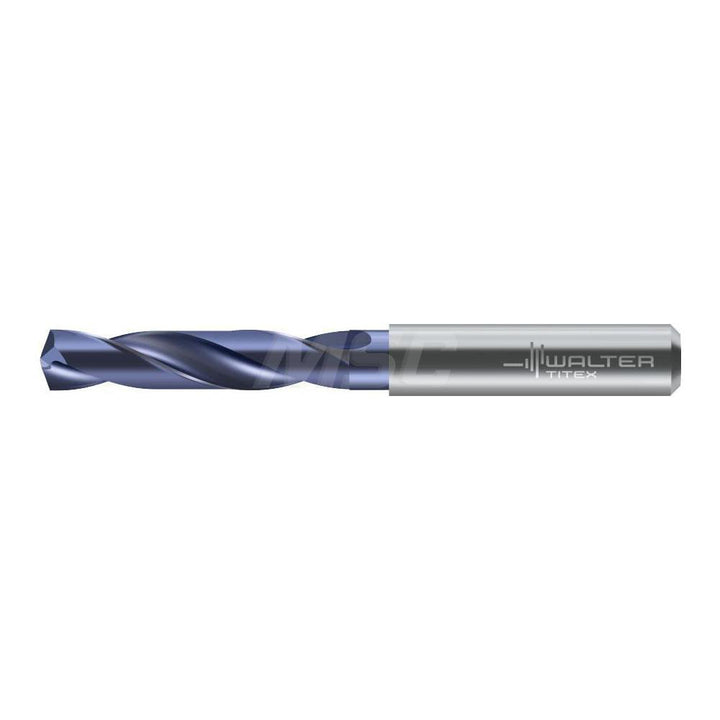

0.4020" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 6618149

Walter-Titex

0.4020" Solid Carbide Screw Machine Drill Bit, 140° point - Walter-Titex 6618149

MFR# 6618149Series DC150-03-A0

$106.57List $136.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3

Description

The Walter-Titex 6618149 is a 0.4020" Solid Carbide Screw Machine drill bit, 140° point. Suited for cast iron, steel. 4 overall length. Series DC150-03-A0.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.4020
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0731
Flute by diameter ratio3xD
Flute length1.2060
Flute typeSpiral
Maximum drilling depth1.2060
Number of flutes3
Overall length in4
Point typeSpecial
Primary workpiece materialCast Iron; Steel
Shank diameter0.4720
Shank length1.7717
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
