Walter-Titex

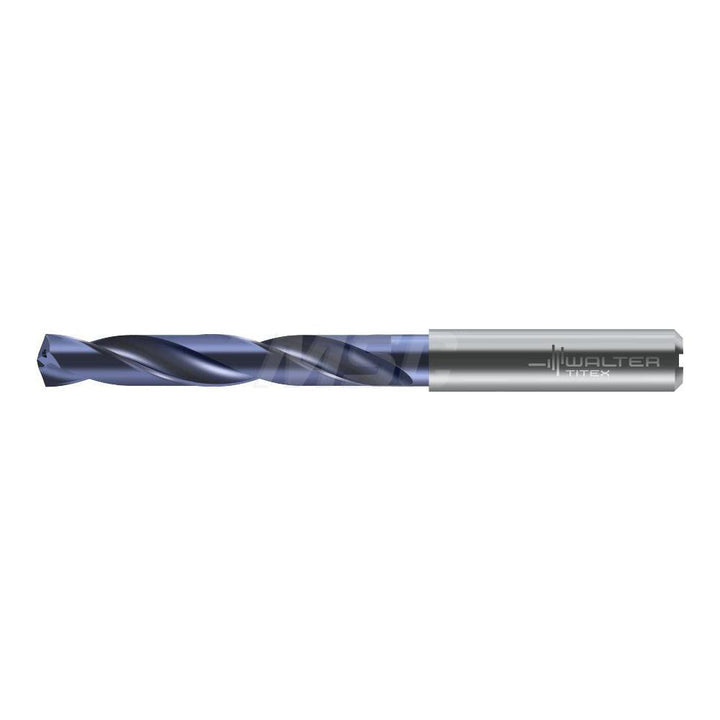

0.1560" Solid Carbide Drill Bit, TiAlN, 140° point - Walter-Titex 6618307
MFR# 6618307Series DC150
$101.81List $128.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Walter-Titex 6618307 is a 0.1560" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, non-ferrous metal, steel, superalloys & titanium. Series DC150.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.1560
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Drill point length0.0284
Flute by diameter ratio5xD
Flute length0.7800
Flute typeSpiral
Maximum drilling depth0.7800
Number of flutes2
Overall length2.9134
Point typeProprietary
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel; Superalloys & Titanium
Shank diameter0.2360
Shank length1.4170
Shank typeWhistle Notch
Specification designationISO
Spiral typeRegular
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
