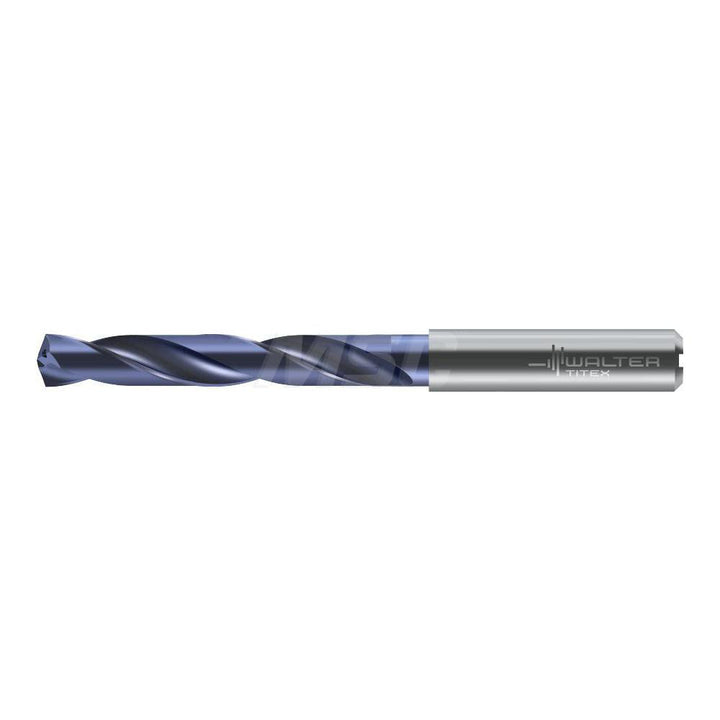

0.2090" Solid Carbide Drill Bit, TiAlN, 140° point - Walter-Titex 6618325

Walter-Titex

0.2090" Solid Carbide Drill Bit, TiAlN, 140° point - Walter-Titex 6618325

MFR# 6618325Series DC150

$76.55List $98.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Walter-Titex 6618325 is a 0.2090" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, non-ferrous metal, steel, superalloys & titanium. Series DC150.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit finish coatingTiAlN
Drill bit materialSolid Carbide
Drill bit size0.2090
Drill bit size range0.2000 - 0.2500
Drill point angle degrees140
Drill point length0.0380
Flute by diameter ratio5xD
Flute length1.0450
Flute typeSpiral
Maximum drilling depth1.0450
Number of flutes2
Overall length3.2283
Point typeProprietary
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel; Superalloys & Titanium
Shank diameter0.2360
Shank length1.4170
Shank typeWhistle Notch
Specification designationISO
Spiral typeRegular
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
