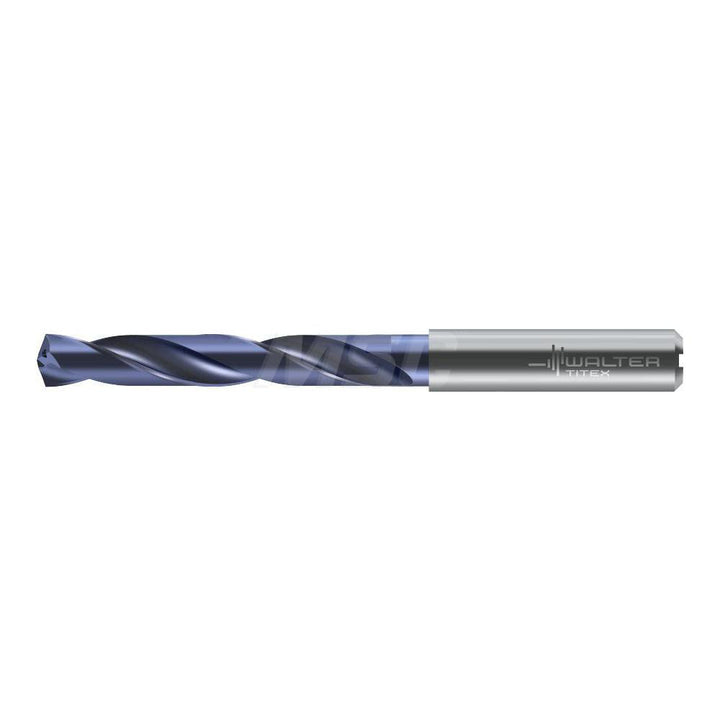

#3 Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618326

Walter-Titex

#3 Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618326

MFR# 6618326Series DC150

$76.55List $98.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6618326 is a #3 Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous. Series DC150.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.2130
Drill bit size range0.2000 - 0.2500
Drill bit size wire#3
Drill point angle degrees140
Drill point length0.0387
Flute by diameter ratio5xD
Flute length1.0650
Flute typeRegular Spiral
Maximum drilling depth1.0650
Number of flutes2
Overall length3.2283
Point typeProprietary
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.2360
Shank length1.4170
Shank typeWhistle Notch
Specification designationISO
Spiral typeRegular
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
