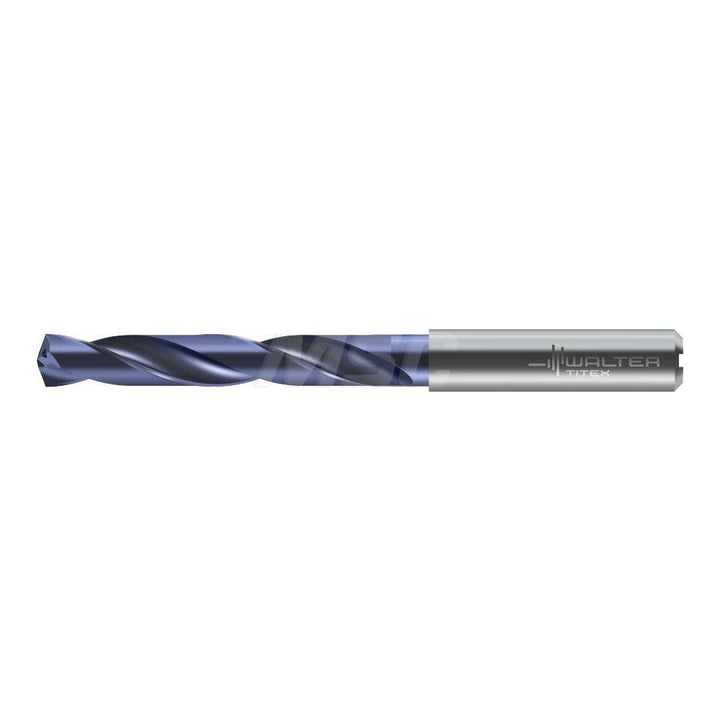

0.2640" Solid Carbide Drill Bit, TiAlN, 140° point - Walter-Titex 6618343

Walter-Titex

0.2640" Solid Carbide Drill Bit, TiAlN, 140° point - Walter-Titex 6618343

MFR# 6618343Series DC150

$91.78List $117.71 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Walter-Titex 6618343 is a 0.2640" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, non-ferrous metal, steel, superalloys & titanium. Series DC150.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.2640
Drill point angle degrees140
Drill point length0.0480
Flute by diameter ratio5xD
Flute length1.3200
Flute typeSpiral
Maximum drilling depth1.3200
Number of flutes2
Overall length3.5827
Point typeProprietary
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel; Superalloys & Titanium
Shank diameter0.3150
Shank length1.4170
Shank typeWhistle Notch
Spiral typeRegular
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
