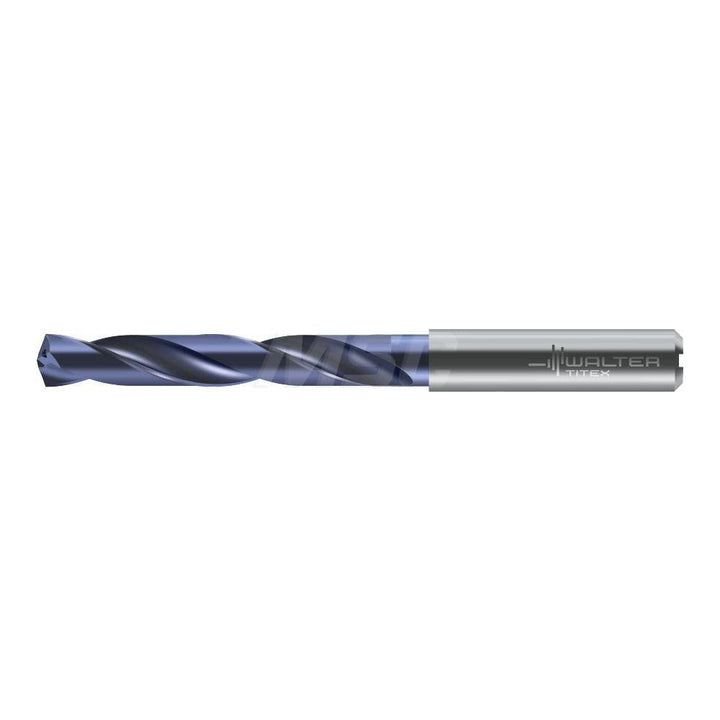

0.5630" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618438

Walter-Titex

0.5630" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618438

MFR# 6618438Series DC150

$260.69List $334.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6618438 is a 0.5630" Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous. Series DC150.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.5630
Drill point angle degrees140
Drill point length0.1020
Flute by diameter ratio5xD
Flute length2.8150
Flute typeRegular Spiral
Maximum drilling depth2.8150
Number of flutes2
Overall length5.2362
Point typeProprietary
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.6300
Shank length1.8898
Shank typeWhistle Notch
Spiral typeRegular
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
