Walter-Titex

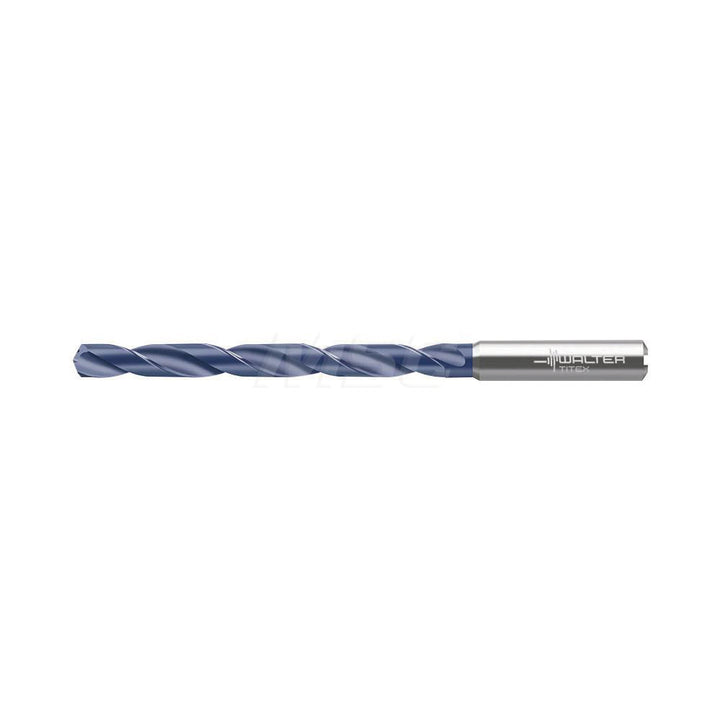

0.1850" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618636
MFR# 6618636Series DC150-08-A1
$187.29List $205.37
Save 8%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiNAl
Description
The Walter-Titex 6618636 is a 0.1850" Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for cast iron, non-ferrous metal, steel, superalloys & titanium. Series DC150-08-A1.
Specifications
Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit materialSolid Carbide
Drill bit size0.1850
Drill point angle degrees140
Drill point length0.0340
Flute by diameter ratio8xD
Flute length1.7720
Maximum drilling depth1.4570
Number of flutes2
Overall length3.3460
Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel; Superalloys & Titanium
Shank diameter0.2360
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
